• Out-of-Stock

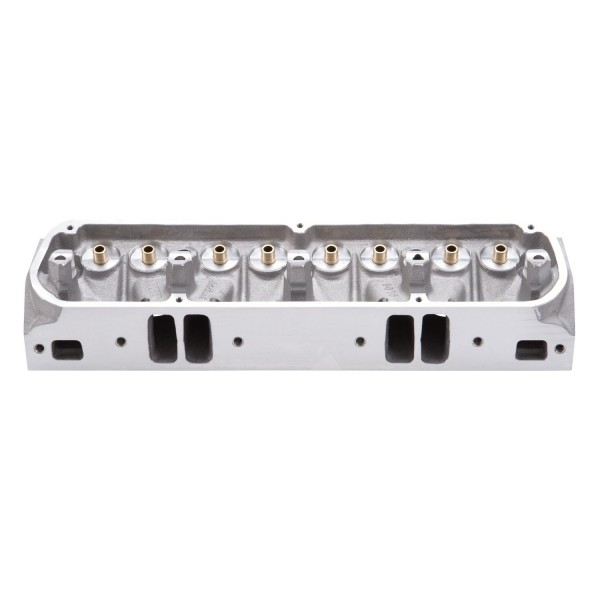

CYL HEAD PERF RPM SB CHRYSLER LA NHRA LEGAL BARE

Manufacturer: EDELBROCK
Part number: 60767
MPN: 60767
UPC: 085347607679
Availability: Out-of-Stock
£0.00
Tax included

Description

The Edelbrock PN: 60767 Performer RPM NHRA Stock/Super Stock Bare cylinder heads are designed for use with non-emission 1968-91 Chrysler 318-340-360 c.i.d. engine applications. These cylinder heads deliver great throttle response and power from 1500 to 6500 rpm. Cast and heat treated at the Edelbrock Foundry and machined at Edelbrock's manufacturing facility in the USA, Edelbrock heads are the best in quality and performance. All Edelbrock Cylinder Heads are designed from scratch using the latest in computer technology by our own highly skilled engineer's. Using highly efficient ports and state-of-the-art combustion chamber shapes, Edelbrock cylinder heads offer improved performance throughout the rpm range for great throttle response and top-end horsepower. Top-quality features include threaded inserts in rocker stud and exhaust bolt holes for superior strength and durability, and manganese-bronze valve guides with ductile iron valve seats. These are features that some other companies don't include!

Chrysler:Small-Block:273 (4.5L)/318 (5.2L)/340 (5.6L)/360 (5.9L)

CYL HEAD PERF RPM SB CHRYSLER LA NHRA LEGAL BARE - Part number: EDL-60767 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 60767 - CYL HEAD PERF RPM SB CHRYSLER LA NHRA LEGAL BARE engine-cylinder-head

Data sheet

Type
Bare
Engine Make/Size
Mopar 318-360
Emission
N/A
Finish
Satin
Material
Aluminum
Usage
Racing
Cylinder Head Type
Standard
Grade Type
Performance
Preparation
Requires Professional Preparation (Bare)
CNC Ported
No
Combustion Chamber Volume
63.0 CCM
Deck Thickness
0.562 IN
Guide Plates Included
No
Head Casting Number
31-6076
Intake Runner Volume
171.0 CCM
Push Rod Diameter
0.312 IN
Valve Angle
18 DD
Deck Height
9.600 IN

Package dimensions

Width: 10.12 inch
Height: 7.19 inch
Depth: 22.19 inch
Weight: 27.45 lb
