Description

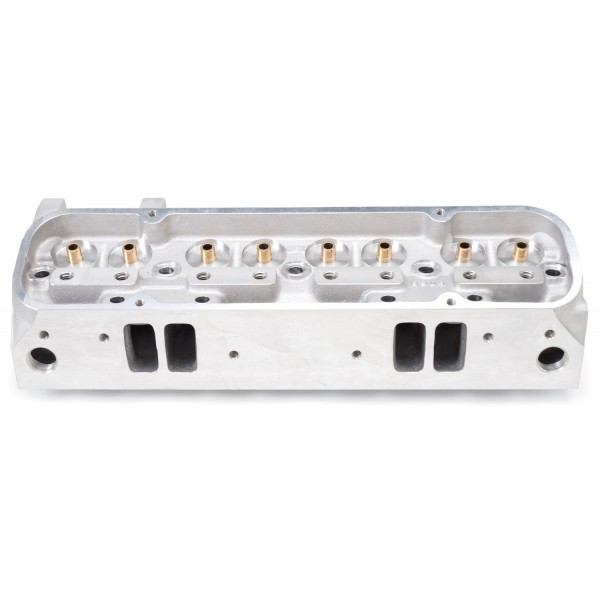

The Edelbrock PN: 60587 Performer RPM NHRA Stock/Super Stock cylinder heads are designed for outstanding performance gains in 1962-79 389-455 c.i.d. Pontiac engines. They feature 87cc combustion chambers designed to maximize performance while using less expensive, low-octane fuel with a streetable 9.5:1 compression ratio. They are patterned after the 1969-70 Ram Air IV Pontiac cylinder head. Performer RPM PN: 60587 is not port matched or bowl blended and is NHRA accepted for Stock & Super Stock. All Edelbrock Cylinder Heads are designed from scratch using the latest in computer technology by our own highly skilled engineer's. Using highly efficient ports and state-of-the-art combustion chamber shapes, Edelbrock cylinder heads offer improved performance throughout the rpm range for great throttle response and top-end horsepower. Top-quality features include threaded inserts in rocker stud and exhaust bolt holes for superior strength and durability, and manganese-bronze valve guides with ductile iron valve seats. These are features that some other companies don't include!
Pontiac:-:326 (5.3L)/350 (5.7L)/389 (6.4L)/400 (6.6L)/421 (6.9L)/428 (7.0L)/455 (7.4)
NHRA CYL HEAD PERF RPM PONTIAC 72CC (BARE) - Part number: EDL-60587 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 60587 - NHRA CYL HEAD PERF RPM PONTIAC 72CC (BARE) engine-cylinder-head
Data sheet
- Type
- Bare
- Engine Make/Size
- Pontiac 326-455
- Emission
- Non-Emissions
- Finish
- Cast Aluminum
- Material
- Aluminum
- Usage
- Competition
- Cylinder Head Type
- Standard
- Grade Type
- Performance
- Preparation
- Requires Professional Preparation (Bare)
- CNC Ported
- No
- Combustion Chamber Volume
- 72.0 CCM
- Deck Thickness
- 0.625 IN
- Guide Plates Included
- No
- Head Casting Number
- 31-6056
- Intake Runner Volume
- 215.0 CCM
- Push Rod Diameter
- 0.312 IN
- Valve Angle
- 14 DD
- Deck Height
- 10.250 IN
Package dimensions
Width: 11.50 inch
Height: 8.50 inch
Depth: 26.00 inch
Weight: 31.40 lb
