CYL HEAD BBC PERF RPM RECT PORT FOR HYD ROLLER CAM NATURAL FINISH
Availability:
Qty: 22, Delivery time: 8 working days
Description

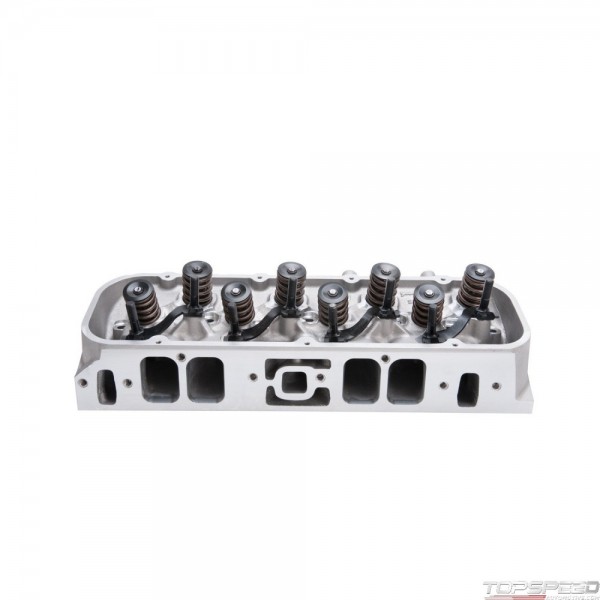

The Edelbrock PN: 60555 Performer RPM Rectangle Port cylinder head is designed for Big-Block Chevy applications. The Edelbrock PN: 60555 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 2500 to 7000 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.
Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L)
Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L)
CYL HEAD BBC PERF RPM RECT PORT FOR HYD ROLLER CAM NATURAL FINISH - Part number: EDL-60555 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 60555 - CYL HEAD BBC PERF RPM RECT PORT FOR HYD ROLLER CAM NATURAL FINISH engine-cylinder-head
Data sheet
- Type
- Complete
- Engine Make/Size
- Chevy Big Block (396-502)
- Emission
- N/A
- Finish
- Cast Aluminum
- Material
- Aluminum
- Usage
- Street/Hi-Performance
- Cylinder Head Type
- Rectangular Port
- Grade Type
- Performance
- Preparation
- Bolt On (Not Required)
- Camshaft Type
- Hydraulic Roller
- Family
- Performer RPM
- Series
- Performer RPM
- CNC Ported
- No
- Combustion Chamber Volume
- 118 CCM
- Construction Type
- Complete
- Deck Thickness
- 0.5625 IN
- EGR Port
- No
- Guide Plates Included
- Yes
- Quantity
- Sold Individually
- Retainer Included
- Yes
- Valve Included
- Yes
- Valve Springs Included
- Yes
- Head Casting Number
- N/A
- Horsepower
- 525-650 HJ
- Exhaust Port Location
- Standard
- Exhaust Runner Volume
- 110 CCM
- Exhaust Valve Diameter
- 1.88 IN
- Guide Material
- Manganese Bronze
- Guide Plate Material
- Hardened Steel
- Intake Runner Volume
- 315 CCM
- Intake Valve Diameter
- 2.19 IN
- Push Rod Diameter
- (Suggested) 0.4375 IN
- Rocker Stud Diameter
- 0.4375 IN
- Seat Angle
- Exhaust 45 deg/Intake 45 DD
- Seat Material
- Ductile Iron
- Valve Angle
- 26 DD
- Valve Spring Diameter
- 1.55 IN
- Valve Spring Maximum Lift
- 0.700 IN
- Valve Stem Diameter
- 0.3438 IN
Package dimensions
Width: 10.50 inch
Height: 8.25 inch
Depth: 24.75 inch
Weight: 43.85 lb
