CYL HEAD PONTIAC PERF RPM CNC CHAMBER 72cc BARE SINGLE
Availability:
Out-of-Stock
Description

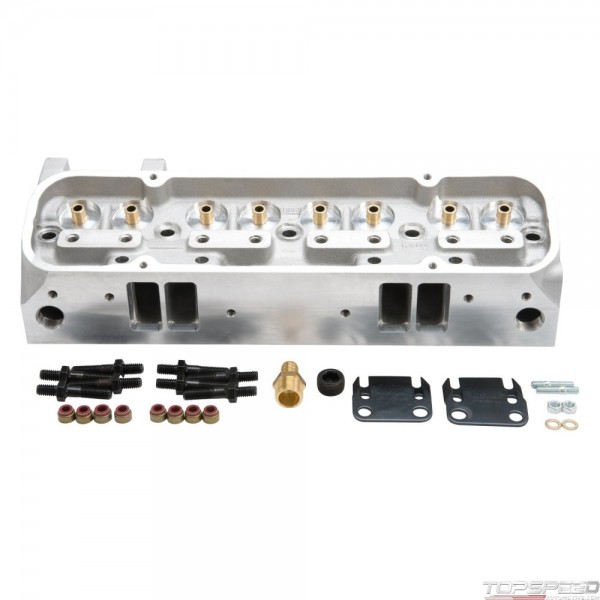

The Edelbrock PN: 60539 Performer RPM CNC Bare Cylinder Head has the same specifications as our popular Performer RPM cylinder head for 1962-79 389-455 c.i.d. Pontiac engines, but feature a CNC machined combustion chamber. The CNC machined chamber results in a consistent and precise chamber for improved flow performance. Performer RPM CNC cylinder head is available in two chamber sizes. Performer RPM CNC cylinder head with 72cc chambers are best for higher compression engines. The Edelbrock PN: 60539 Performer RPM CNC cylinder head is patterned after the same port flange configuration as the 1969-1970 Ram-Air IV Pontiac Cylinder Head.
Pontiac:-:326 (5.3L)/350 (5.7L)/389 (6.4L)/400 (6.6L)/421 (6.9L)/428 (7.0L)/455 (7.4)
Pontiac:-:326 (5.3L)/350 (5.7L)/389 (6.4L)/400 (6.6L)/421 (6.9L)/428 (7.0L)/455 (7.4)
CYL HEAD PONTIAC PERF RPM CNC CHAMBER 72cc BARE SINGLE - Part number: EDL-60539 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 60539 - CYL HEAD PONTIAC PERF RPM CNC CHAMBER 72cc BARE SINGLE engine-cylinder-head
Data sheet
- Type
- Bare
- Engine Make/Size
- Pontiac 326-455
- Emission
- N/A
- Finish
- Cast Aluminum
- Material
- Aluminum
- Usage
- Street/Hi-Performance
- Cylinder Head Type
- Standard
- Grade Type
- Performance
- Preparation
- Requires Professional Preparation (Bare)
- Family
- Performer RPM
- Series
- Performer RPM
- CNC Ported
- Yes
- Combustion Chamber Volume
- 72 CCM
- Construction Type
- Bare
- Deck Thickness
- 0.625 IN
- EGR Port
- No
- Guide Plates Included
- Yes
- Quantity
- Sold Individually
- Retainer Included
- No
- Valve Included
- No
- Valve Springs Included
- No
- Head Casting Number
- N/A
- Exhaust Port Location
- Standard
- Exhaust Runner Volume
- 175 CCM
- Guide Material
- Manganese Bronze
- Guide Plate Material
- Hardened Steel
- Intake Runner Volume
- 215 CCM
- Seat Angle
- Exhaust 45 deg/Intake 45 DD
- Seat Material
- Ductile Iron
- Valve Angle
- 14 DD
Package dimensions
Width: 10.44 inch
Height: 8.18 inch
Depth: 24.75 inch
Weight: 36.25 lb
