Description

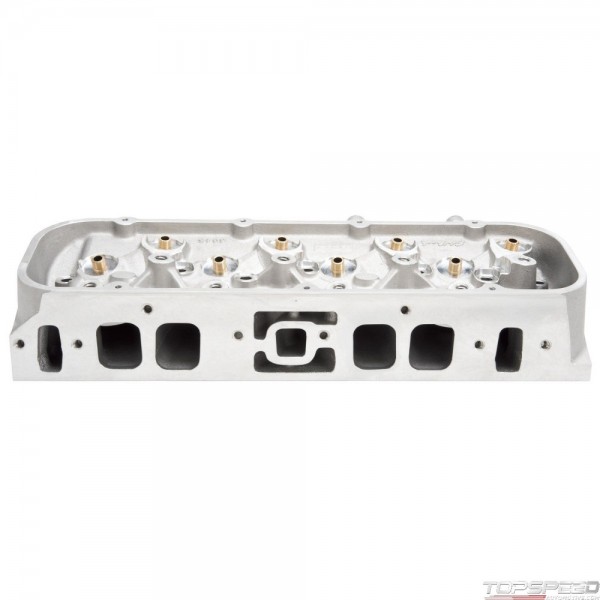

The Edelbrock PN: 60489 Performer Bare High Compression Cylinder Heads are designed for Big-Block Chevy Oval Port V8 applications. These Edelbrock Performer Series Cylinder heads are 50-state street legal and provide outstanding performance from Idle-5,500 RPM's. The Edelbrock Performer heads are perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. They also feature the highest quality intake and exhaust valves and valve springs.
Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L)
Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L)
ONE ONLY-BBC TBI HEAD BARE - Part number: EDL-60489 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 60489 - ONE ONLY-BBC TBI HEAD BARE engine-cylinder-head
Data sheet
- Type
- Bare
- Engine Make/Size
- Chevy Big Block (396-502)
- Emission
- 50 State Legal
- Finish
- Satin
- Material
- Aluminum
- Usage
- Street/Hi-Performance
- Cylinder Head Type
- Standard
- Grade Type
- Performance
- Preparation
- Requires Professional Preparation (Bare)
- CNC Ported
- No
- Combustion Chamber Volume
- 100.0 CCM
- Deck Thickness
- 0.562 IN
- Guide Plates Included
- Yes
- Head Casting Number
- 31-6045
- CARB Executive Order Number
- D-215-94
- Guide Plate Material
- Hardened Steel
- Intake Runner Volume
- 290.0 CCM
- Push Rod Diameter
- 0.375 IN
- Valve Angle
- 26 DD
- Deck Height
- 9.8 IN
Package dimensions
Width: 11.00 inch
Height: 8.60 inch
Depth: 26.00 inch
Weight: 36.70 lb
