BBC PERF COMPLETE HD
Availability:
Out-of-Stock
Description

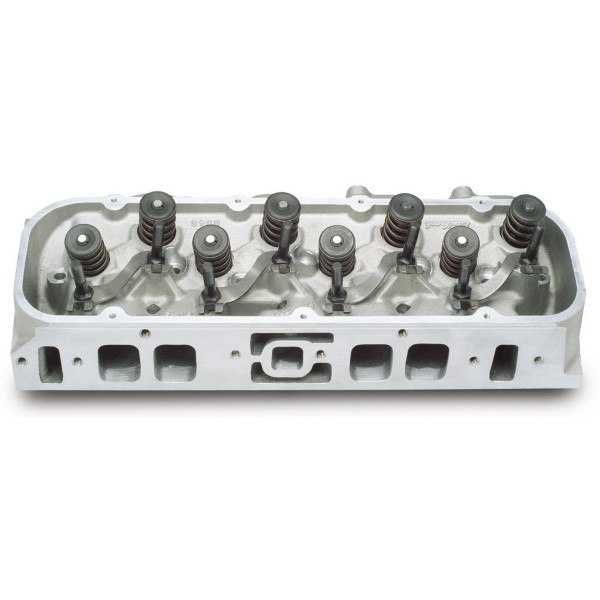

The Edelbrock PN: 60479 Performer cylinder head is designed for Big-Block Chevy Oval Port V8 applications. These Edelbrock Performer Series cylinder head is 50-state street legal and provide outstanding performance from Idle-5,500 RPM's. The Edelbrock Performer head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. They also feature the highest quality intake and exhaust valves and valve springs.
Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L)
Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L)
BBC PERF COMPLETE HD - Part number: EDL-60479 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 60479 - BBC PERF COMPLETE HD engine-cylinder-head
Data sheet
- Type
- Complete
- Engine Make/Size
- Chevy Big Block (396-502)
- Emission
- 50 State Legal
- Finish
- Satin
- Material
- Aluminum
- Usage
- Street/Performance
- Cylinder Head Type
- Oval Port- Large
- Grade Type
- Performance
- Preparation
- Bolt On (Not Required)
- Camshaft Type
- Flat Tappet
- Family
- Performer
- Series
- Performer
- CNC Ported
- No
- Combustion Chamber Volume
- 110 CCM
- Construction Type
- Complete
- Deck Thickness
- 0.5625 IN
- EGR Port
- No
- Guide Plates Included
- Yes
- Quantity
- Sold Individually
- Retainer Included
- Yes
- Valve Included
- Yes
- Valve Springs Included
- Yes
- Head Casting Number
- N/A
- CARB Executive Order Number
- D-215-94
- Horsepower
- 450-550 HJ
- Exhaust Port Location
- Standard
- Exhaust Runner Volume
- 110 CCM
- Exhaust Valve Diameter
- 1.88 IN
- Guide Material
- Manganese Bronze
- Guide Plate Material
- Hardened Steel
- Intake Runner Volume
- 290 CCM
- Intake Valve Diameter
- 2.19 IN
- Push Rod Diameter
- (Suggested) 0.4375 IN
- Rocker Stud Diameter
- 0.4375 IN
- Seat Angle
- Exhaust 45 deg/Intake 45 DD
- Seat Material
- Ductile Iron
- Valve Angle
- 26 DD
- Valve Spring Diameter
- 1.50 IN
- Valve Spring Maximum Lift
- 0.700 IN
- Valve Stem Diameter
- 0.3438 IN
Package dimensions
Width: 11.30 inch
Height: 9.00 inch
Depth: 26.00 inch
Weight: 43.80 lb
