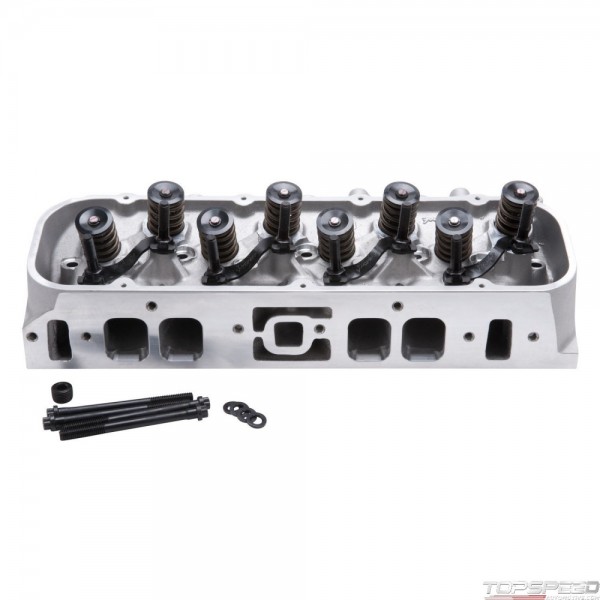

CYL HEAD BBC PERF RPM OVAL PORT 100cc COMPLETE SINGLE W/SPRINGS FOR HYD FLAT TAP

Manufacturer: EDELBROCK
Part number: 60439
MPN: 60439
UPC: 085347604395
Availability: Out-of-Stock
£0.00
Tax included

Description

The Edelbrock PN: 60439 Performer RPM High-Compression O-Port cylinder head is designed for Big-Block Chevy applications. The Edelbrock PN: 60439 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.

Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L)

CYL HEAD BBC PERF RPM OVAL PORT 100cc COMPLETE SINGLE W/SPRINGS FOR HYD FLAT TAP - Part number: EDL-60439 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 60439 - CYL HEAD BBC PERF RPM OVAL PORT 100cc COMPLETE SINGLE W/SPRINGS FOR HYD FLAT TAP engine-cylinder-head

Data sheet

Type
Complete
Engine Make/Size
Chevy Big Block (396-502)
Emission
Non-Emissions
Finish
Satin
Material
Aluminum
Usage
Street/Hi-Performance
Cylinder Head Type
Oval Port- Standard
Grade Type
Performance
Preparation
Bolt On (Not Required)
Camshaft Type
Flat Tappet
Family
Performer RPM
Series
Performer RPM
CNC Ported
No
Combustion Chamber Volume
100 CCM
Construction Type
Complete
Deck Thickness
0.5625 IN
EGR Port
No
Guide Plates Included
Yes
Quantity
Sold Individually
Retainer Included
Yes
Valve Included
Yes
Valve Springs Included
Yes
Head Casting Number
N/A
Horsepower
500-600 HJ
Exhaust Port Location
Standard
Exhaust Runner Volume
110 CCM
Exhaust Valve Diameter
1.88 IN
Guide Material
Manganese Bronze
Guide Plate Material
Hardened Steel
Intake Runner Volume
290 CCM
Intake Valve Diameter
2.19 IN
Push Rod Diameter
(Suggested) 0.4375 IN
Rocker Stud Diameter
0.4375 IN
Seat Angle
Exhaust 45 deg/Intake 45 DD
Seat Material
Ductile Iron
Valve Angle
26 DD
Valve Spring Diameter
1.50 IN
Valve Spring Maximum Lift
0.700 IN
Valve Stem Diameter
0.3438 IN

Package dimensions

Width: 11.50 inch
Height: 9.00 inch
Depth: 26.00 inch
Weight: 44.10 lb
