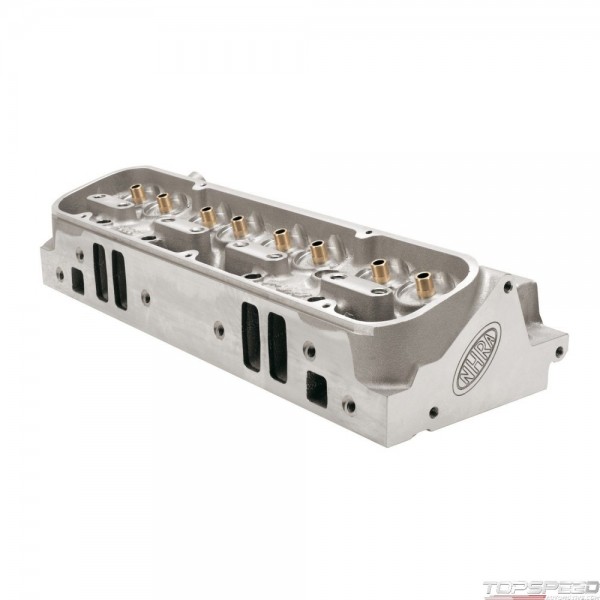

CYL HEAD SBF PERF 5.0/5.8L BARE NHRA LEGAL
Availability:
Out-of-Stock
Description
The Edelbrock PN: 60367 Performer NHRA Stock/Super Stock cylinder head is designed for use with 1982-95 50.L & 5.8L V8 applications. Cast and heat treated at the Edelbrock Foundry and machined at Edelbrock's manufacturing facility in the USA, the Edelbrock head is the best in quality and performance. All Edelbrock cylinder head is designed from scratch using the latest in computer technology by our own highly skilled engineer's. Using highly efficient ports and state-of-the-art combustion chamber shapes, Edelbrock cylinder head offers improved performance throughout the rpm range for great throttle response and top-end horsepower. Top-quality features include threaded inserts in rocker stud and exhaust bolt holes for superior strength and durability, and manganese-bronze valve guides with ductile iron valve seats. These are features that some other companies don't include!
Ford:Small-Block Windsor:302 (5.0L)/351 (5.8L)
Ford:Small-Block Windsor:302 (5.0L)/351 (5.8L)
CYL HEAD SBF PERF 5.0/5.8L BARE NHRA LEGAL - Part number: EDL-60367 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 60367 - CYL HEAD SBF PERF 5.0/5.8L BARE NHRA LEGAL engine-cylinder-head
Data sheet
- Type
- Bare
- Engine Make/Size
- Ford 5.8L/351W
- Emission
- N/A
- Finish
- Cast Aluminum
- Material
- Aluminum
- Usage
- Racing
- Cylinder Head Type
- Standard
- Grade Type
- Performance
- Preparation
- Requires Professional Preparation (Bare)
- Family
- Performer
- Series
- Performer
- CNC Ported
- No
- Combustion Chamber Volume
- 60 CCM
- Construction Type
- Bare
- Deck Thickness
- 0.625 IN
- EGR Port
- Yes
- Guide Plates Included
- No
- Quantity
- Sold Individually
- Retainer Included
- No
- Valve Included
- No
- Valve Springs Included
- No
- Exhaust Port Location
- Standard
- Exhaust Runner Volume
- 60 CCM
- Guide Material
- Manganese Bronze
- Intake Runner Volume
- 170 CCM
- Seat Angle
- Exhaust 45 deg/Intake 45 DD
- Seat Material
- Ductile Iron
Package dimensions
Width: 10.12 inch
Height: 7.19 inch
Depth: 22.19 inch
Weight: 26.35 lb
