COMP PERF SBF HD 1.90
Availability:
Last items in stock
Qty: 2, Delivery time: 8 working days
Description

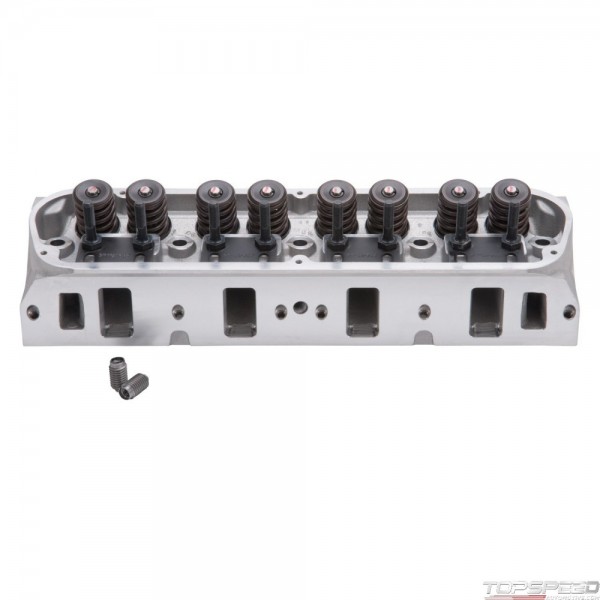

The Edelbrock PN: 60329 Performer cylinder head is designed for use with 1965-95 289, 302 & 351W c.i.d. engine applications. These Edelbrock Performer Series cylinder head is 50-state street legal and provide outstanding performance from Idle-5,500 RPM's. The Edelbrock Performer head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. They also feature the highest quality intake and exhaust valves and valve springs.
Ford:Small-Block Windsor:289 (4.7L)/302 (5.0L)
Ford:Small-Block Windsor:289 (4.7L)/302 (5.0L)
COMP PERF SBF HD 1.90 - Part number: EDL-60329 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 60329 - COMP PERF SBF HD 1.90 engine-cylinder-head
Data sheet
- Type
- Complete
- Engine Make/Size
- Ford Small Block
- Emission
- 50 State Legal
- Finish
- Cast Aluminum
- Material
- Aluminum
- Usage
- Street/Performance
- Cylinder Head Type
- Standard
- Grade Type
- Performance
- Preparation
- Bolt On (Not Required)
- Camshaft Type
- Flat Tappet
- Family
- Performer
- Series
- Performer
- CNC Ported
- No
- Combustion Chamber Volume
- 60 CCM
- Construction Type
- Complete
- Deck Thickness
- 0.625 IN
- EGR Port
- Yes
- Guide Plates Included
- Yes
- Quantity
- Sold Individually
- Retainer Included
- Yes
- Valve Included
- Yes
- Valve Springs Included
- Yes
- CARB Executive Order Number
- D-215-94
- Horsepower
- 300-450 HJ
- Exhaust Port Location
- Standard
- Exhaust Runner Volume
- 60 CCM
- Exhaust Valve Diameter
- 1.60 IN
- Guide Material
- Manganese Bronze
- Guide Plate Material
- Hardened Steel
- Intake Runner Volume
- 170 CCM
- Intake Valve Diameter
- 1.90 IN
- Push Rod Diameter
- (Suggested) 0.3125 IN
- Rocker Stud Diameter
- 0.375 IN
- Seat Angle
- Exhaust 45 deg/Intake 45 DD
- Seat Material
- Ductile Iron
- Valve Angle
- 20 DD
- Valve Spring Diameter
- 1.46 IN
- Valve Spring Maximum Lift
- 0.575 IN
- Valve Stem Diameter
- 0.3438 IN
Package dimensions
Width: 11.00 inch
Height: 8.50 inch
Depth: 26.00 inch
Weight: 31.85 lb
