POLISHED (NR) COMP PERF SBF HD 1.90
Availability:
Out-of-Stock
Description

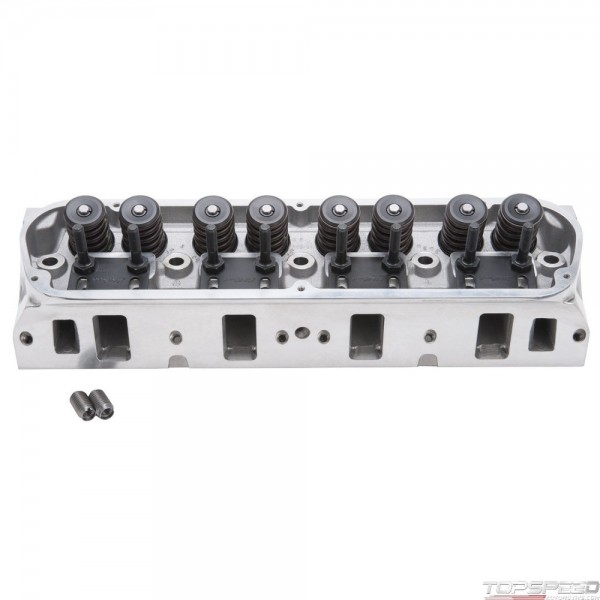

The Edelbrock PN: 603219 Performer Cylinder Heads are designed for use with 1965-95 289, 302 & 351W c.i.d. engine applications. These Edelbrock Performer Series Cylinder heads are 50-state street legal and provide outstanding performance from Idle-5,500 RPM's. The Edelbrock Performer heads are perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. They also feature the highest quality intake and exhaust valves and valve springs.
Ford:Small-Block Windsor:289 (4.7L)/302 (5.0L)
Ford:Small-Block Windsor:289 (4.7L)/302 (5.0L)
POLISHED (NR) COMP PERF SBF HD 1.90 - Part number: EDL-603219 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 603219 - POLISHED (NR) COMP PERF SBF HD 1.90 engine-cylinder-head
Data sheet
- Type
- Complete
- Engine Make/Size
- Ford Small Block
- Emission
- 50 State Legal
- Finish
- Polished
- Material
- Aluminum
- Usage
- Street/Performance
- Cylinder Head Type
- Standard
- Grade Type
- Performance
- Preparation
- Bolt On (Not Required)
- CNC Ported
- No
- Combustion Chamber Volume
- 60.0 CCM
- Deck Thickness
- 0.625 IN
- Guide Plates Included
- Yes
- Head Casting Number
- 6025P
- CARB Executive Order Number
- D-215-94
- Exhaust Valve Diameter
- 1.600 IN
- Guide Plate Material
- Hardened Steel
- Intake Runner Volume
- 170.0 CCM
- Intake Valve Diameter
- 1.900 IN
- Push Rod Diameter
- 0.312 IN
- Rocker Stud Diameter
- 0.375 IN
- Valve Angle
- 20 DD
- Valve Spring Diameter
- 1.460 IN
- Valve Spring Maximum Lift
- 0.575 IN
- Valve Stem Diameter
- 0.341 IN
- Deck Height
- 8.2 IN
Package dimensions
Width: 10.12 inch
Height: 7.19 inch
Depth: 22.19 inch
Weight: 31.50 lb
