CYL HD SBF WINDSOR RPM SCCA COMPLETE
Availability:
Out-of-Stock
Description

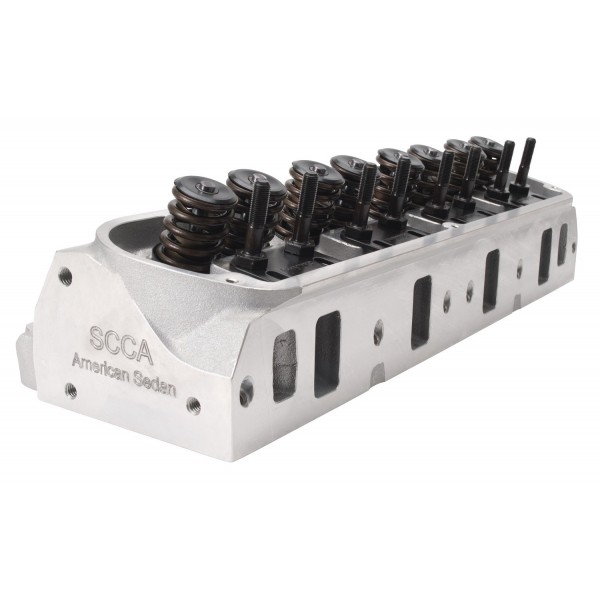

The Edelbrock 602579 small block Ford Performer RPM cylinder head is designed exclusively for the SCCA American Sedan Series Class. They feature 1.94in. intake, 1.55in. exhaust valve sizes and non interlocking valve seats. To comply with class rules, there is no blending work in the intake entries, exhaust exits or bowl area of the intake or exhaust. The casting is manufactured of A356 aluminum and heat treated to T6 spec for superior quality. The head includes manganese-bronze valve guides, one-piece stainless steel valves with hardened tips, ductile iron valve seats and Heli-Coil threaded inserts in the exhaust and rocker stud holes. A bare head will require final sizing of the valve guides and proper valve job prior to the installation of valves. An Edelbrock SCCA RPM head is engraved with the SCCA approved logo and are legal for the American Sedan Class. For additional information, please refer to the SCCA rule book.
Ford:Small-Block Windsor:289 (4.7L)/302 (5.0L)
Ford:Small-Block Windsor:289 (4.7L)/302 (5.0L)
CYL HD SBF WINDSOR RPM SCCA COMPLETE - Part number: EDL-602579 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 602579 - CYL HD SBF WINDSOR RPM SCCA COMPLETE engine-cylinder-head
Data sheet
- Type
- Complete
- Engine Make/Size
- Ford 289-351W
- Emission
- Non-Emissions
- Finish
- Cast Aluminum
- Material
- Aluminum
- Usage
- Competition
- Cylinder Head Type
- Standard
- Grade Type
- Performance
- Preparation
- Bolt On (Not Required)
- Family
- SCCA RPM
- Series
- SCCA RPM
- CNC Ported
- No
- Combustion Chamber Volume
- 60 CCM
- Construction Type
- Complete
- Deck Thickness
- 0.625 IN
- EGR Port
- Yes
- Guide Plates Included
- Yes
- Quantity
- Sold Individually
- Retainer Included
- No
- Valve Included
- Yes
- Valve Springs Included
- No
- Horsepower
- 300-500 HJ
- Exhaust Port Location
- Standard
- Exhaust Runner Volume
- 60 CCM
- Exhaust Valve Diameter
- 1.55 IN
- Guide Material
- Manganese Bronze
- Guide Plate Material
- Hardened Steel
- Intake Runner Volume
- 170 CCM
- Intake Valve Diameter
- 1.94 IN
- Rocker Stud Diameter
- 0.375 IN
- Seat Angle
- Exhaust 0 deg/Intake 0 DD
- Seat Material
- Ductile Iron
- Valve Angle
- 20 DD
- Valve Stem Diameter
- 0.3438 IN
Package dimensions
Width: 10.12 inch
Height: 7.19 inch
Depth: 22.19 inch
Weight: 31.75 lb
