CYL HEAD SBF PERF RPM 1.90in. INT VALVE FOR HYD ROLLER CAM COMPLETE
Availability:
Qty: 14, Delivery time: 8 working days
Description

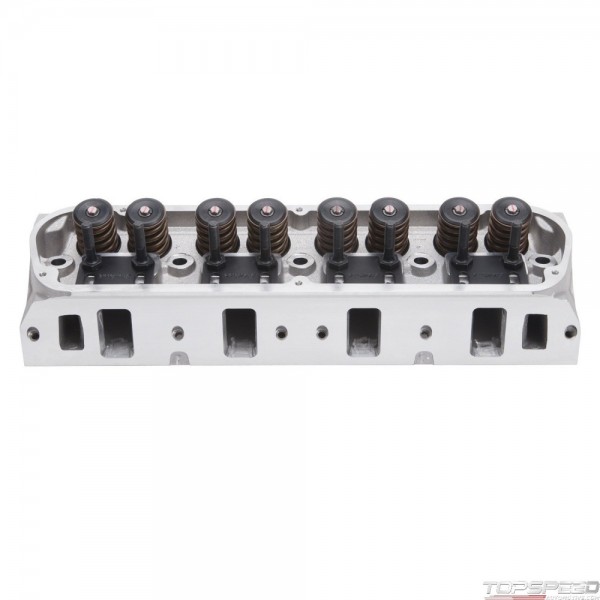

The Edelbrock PN: 60225 Performer RPM cylinder head is designed for use with 289-351W c.i.d. Small-Block Ford applications. The Edelbrock PN: 60225 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.
Ford:Small-Block Windsor:289 (4.7L)/302 (5.0L)
Ford:Small-Block Windsor:289 (4.7L)/302 (5.0L)
CYL HEAD SBF PERF RPM 1.90in. INT VALVE FOR HYD ROLLER CAM COMPLETE - Part number: EDL-60225 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 60225 - CYL HEAD SBF PERF RPM 1.90in. INT VALVE FOR HYD ROLLER CAM COMPLETE engine-cylinder-head
Data sheet
- Type
- Complete
- Engine Make/Size
- Ford 289-351W
- Emission
- N/A
- Finish
- Cast Aluminum
- Material
- Aluminum
- Usage
- Street/Hi-Performance
- Cylinder Head Type
- Standard
- Grade Type
- Performance
- Preparation
- Bolt On (Not Required)
- Camshaft Type
- Hydraulic Roller
- Family
- Performer RPM
- Series
- Performer RPM
- CNC Ported
- No
- Combustion Chamber Volume
- 60 CCM
- Construction Type
- Complete
- Deck Thickness
- 0.625 IN
- EGR Port
- No
- Guide Plates Included
- Yes
- Quantity
- Sold Individually
- Retainer Included
- Yes
- Valve Included
- Yes
- Valve Springs Included
- Yes
- Horsepower
- 300-450 HJ
- Exhaust Port Location
- Standard
- Exhaust Runner Volume
- 60 CCM
- Exhaust Valve Diameter
- 1.60 IN
- Guide Material
- Manganese Bronze
- Guide Plate Material
- Hardened Steel
- Intake Runner Volume
- 170 CCM
- Intake Valve Diameter
- 1.90 IN
- Push Rod Diameter
- (Suggested) 0.3125 IN
- Rocker Stud Diameter
- 0.375 IN
- Seat Angle
- Exhaust 45 deg/Intake 45 DD
- Seat Material
- Ductile Iron
- Valve Angle
- 20 DD
- Valve Spring Diameter
- 1.46 IN
- Valve Spring Maximum Lift
- 0.575 IN
- Valve Stem Diameter
- 0.3438 IN
Package dimensions
Width: 10.12 inch
Height: 7.19 inch
Depth: 22.19 inch
Weight: 32.20 lb
