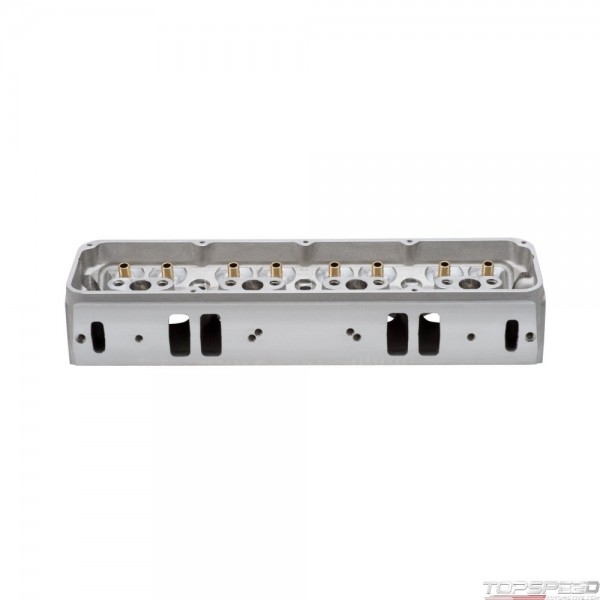

CYL HEAD PERF RPM AMC NHRA LEGAL BARE
Availability:
Out-of-Stock
Description
The Edelbrock PN: 60107 Performer RPM NHRA Stock/Super Stock Cylinder Heads are designed as a bolt-on performance upgrade for any 1967-91 AMX, Javelin or Jeep with a 343, 360, 390 or 401 AMC V8 engine. They include adjustable rocker studs and guide plates set-up for use with small-block Ford style adjustable 1.6:1 ratio rockers. The intake flange is dual-drilled to accommodate early and late model intake bolt patterns, covering 1967-91. Complete heads include larger than- stock valve springs to handle most high-lift cams. They feature stock location ports for compatibility with standard manifolds and headers. A direct bolt-on for 1970 and later engines with 1/2in. head bolts, these heads include step-dowel pins for pre-1970 engines. Their dual-quench combustion chambers produce approximately 9.5:1 compression in 401 V8 engines. The 45 Deg intake seat angle offers improved mid- to high-lift flow over the stock 30 Deg angle.
AMC:-:290 (4.7L)/304 (5.0L)/360 (5.9L)/390 (6.4L)/401 (6.6L)
AMC:-:290 (4.7L)/304 (5.0L)/360 (5.9L)/390 (6.4L)/401 (6.6L)
CYL HEAD PERF RPM AMC NHRA LEGAL BARE - Part number: EDL-60107 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 60107 - CYL HEAD PERF RPM AMC NHRA LEGAL BARE engine-cylinder-head
Data sheet
- Type
- Bare
- Engine Make/Size
- AMC 290-401
- Emission
- Non-Emissions
- Finish
- Satin
- Material
- Aluminum
- Usage
- Racing
- Cylinder Head Type
- Standard
- Grade Type
- Performance
- Preparation
- Requires Professional Preparation (Bare)
- CNC Ported
- No
- Combustion Chamber Volume
- 54.0 CCM
- Deck Thickness
- 0.625 IN
- Guide Plates Included
- No
- Head Casting Number
- 31-6013
- Intake Runner Volume
- 185.0 CCM
- Push Rod Diameter
- 0.312 IN
- Valve Angle
- 18 DD
- Deck Height
- 9.208 IN
Package dimensions
Width: 10.12 inch
Height: 7.19 inch
Depth: 22.19 inch
Weight: 27.30 lb
