Description

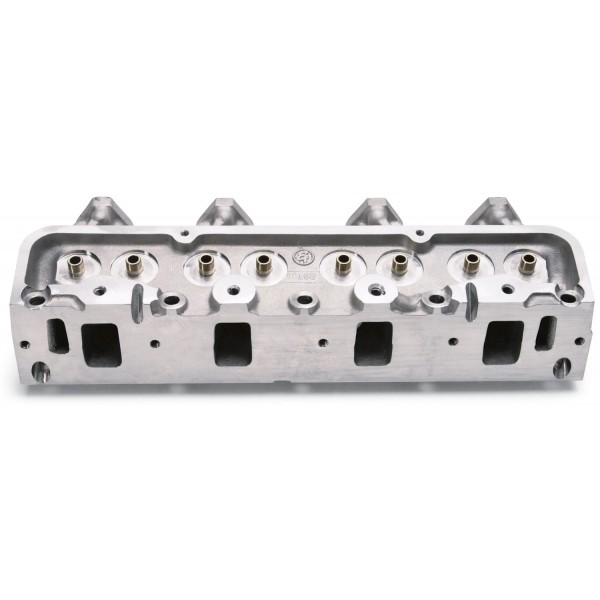

The Edelbrock PN: 60058 Performer RPM Super Stock Cylinder Heads are designed for use with 1961-76 390-427-428 Ford applications. Edelbrock Performer RPM heads are perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. These cylinder heads deliver great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.
Ford:FE:332 (5.4L)/352 (5.8L)/360 (5.9L)/390 (6.4L)/406 (6.6L)/410 (6.7L)/427 (7.0L)/428 (7.0L)
NHRA 428 FORD HEAD - Part number: EDL-60058 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 60058 - NHRA 428 FORD HEAD engine-cylinder-head
Data sheet
- Type
- Bare
- Engine Make/Size
- Ford Big Block 428 FE Series
- Emission
- Non-Emissions
- Finish
- Satin
- Material
- Aluminum
- Usage
- Racing
- Cylinder Head Type
- Standard
- Grade Type
- Performance
- Preparation
- Requires Professional Preparation (Bare)
- CNC Ported
- No
- Combustion Chamber Volume
- 72.0 CCM
- Deck Thickness
- 0.625 IN
- Guide Plates Included
- No
- Head Casting Number
- 31-6005
- Intake Runner Volume
- 170.0 CCM
- Push Rod Diameter
- 0.312 IN
- Valve Angle
- 13 DD
- Deck Height
- 10.170 IN
Package dimensions
Width: 11.10 inch
Height: 8.50 inch
Depth: 26.10 inch
Weight: 25.70 lb
