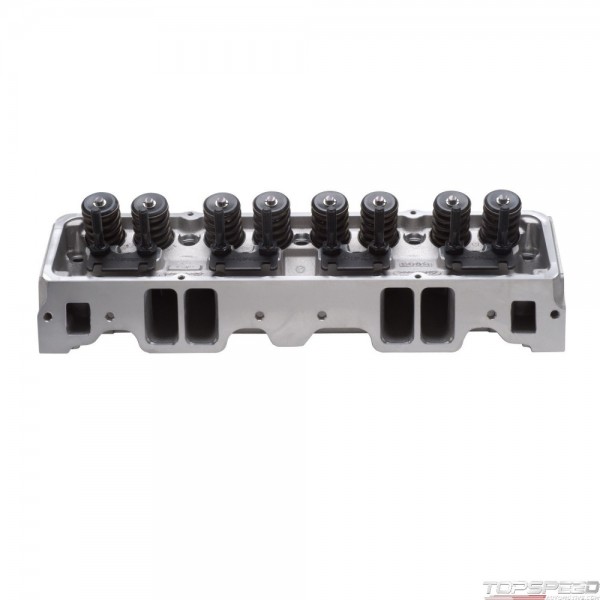

1pr. CYL HEAD E-210 SBC 64cc FOR HYD FLAT TAPPET CAM (COMPLETE PAIR)
Availability:
Out-of-Stock
Description
The Edelbrock PN: 5085 E-210 Cylinder heads are designed for use with 1955-1986 Small-Block Chevy applications. The Edelbrock E-Series cylinder heads are a step up in affordable performance from our E-Street line. They feature larger runners for increased airflow, revised exhaust ports and larger diameter springs for higher lift camshafts, making them ideal for a spec series racer and larger displacement engines. The Edelbrock PN: 5028 E-Series Cylinder heads also have as-cast ports and maintain the stock exhaust port location, making them compatible with OEM headers and hardware.
Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L)
Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L)
1pr. CYL HEAD E-210 SBC 64cc FOR HYD FLAT TAPPET CAM (COMPLETE PAIR) - Part number: EDL-5085 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 5085 - 1pr. CYL HEAD E-210 SBC 64cc FOR HYD FLAT TAPPET CAM (COMPLETE PAIR) engine-cylinder-head
Data sheet
- Type
- Complete
- Engine Make/Size
- Chevy Small Block (262-400)
- Emission
- Non-Emissions
- Finish
- Polished
- Material
- Aluminum
- Usage
- Competition
- Cylinder Head Type
- Standard
- Grade Type
- Performance
- Preparation
- Bolt On (Not Required)
- Camshaft Type
- Flat Tappet
- Family
- E-Series
- Series
- E-Series
- CNC Ported
- No
- Combustion Chamber Volume
- 64 CCM
- Construction Type
- Complete
- Deck Thickness
- 0.5625 IN
- EGR Port
- No
- Guide Plates Included
- Yes
- Quantity
- Set of 2
- Retainer Included
- Yes
- Valve Included
- Yes
- Valve Springs Included
- Yes
- Head Casting Number
- N/A
- Horsepower
- 400-550 HJ
- Exhaust Port Location
- Standard
- Exhaust Runner Volume
- 75 CCM
- Exhaust Valve Diameter
- 1.60 IN
- Guide Material
- Manganese Bronze
- Guide Plate Material
- Hardened Steel
- Intake Runner Volume
- 210 CCM
- Intake Valve Diameter
- 2.08 IN
- Push Rod Diameter
- (Suggested) 0.5625 IN
- Rocker Stud Diameter
- 0.375 IN
- Seat Angle
- Exhaust 45 deg/Intake 45 DD
- Seat Material
- Ductile Iron
- Valve Angle
- 23 DD
- Valve Spring Diameter
- 1.46 IN
- Valve Spring Maximum Lift
- 0.575 IN
- Valve Stem Diameter
- 0.3438 IN
- Rotor Center Bore Inside Diameter
- Straight
Package dimensions
Width: 12.00 inch
Height: 9.00 inch
Depth: 25.50 inch
Weight: 59.15 lb
