1 PAIR SBF CYL HEAD E-205 2.08 INTAKE COMPLETE
Availability:
Qty: 27, Delivery time: 8 working days
Description

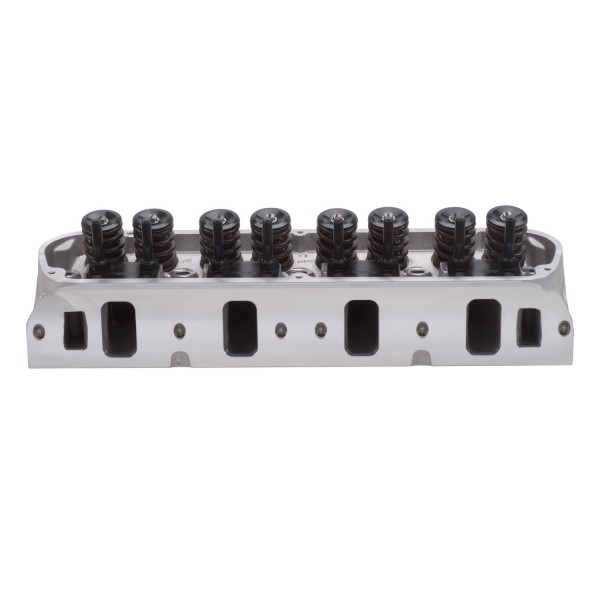

The Edelbrock PN: 5027 E-Series Cylinder heads are designed for Small-Block Ford applications. The Edelbrock E-Series cylinder heads are a step up in affordable performance from our E-Street line. They feature larger runners for increased airflow, revised exhaust ports and larger diameter springs for higher lift camshafts, making them ideal for a spec series racer and larger displacement engines. The Edelbrock PN: 5027 E-Street Cylinder heads also have as-cast ports and maintain the stock exhaust port location, making them compatible with OEM headers and hardware.
Ford:Small-Block Windsor:289 (4.7L)/302 (5.0L)/351 (5.8L)
Ford:Small-Block Windsor:289 (4.7L)/302 (5.0L)/351 (5.8L)
1 PAIR SBF CYL HEAD E-205 2.08 INTAKE COMPLETE - Part number: EDL-5027 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 5027 - 1 PAIR SBF CYL HEAD E-205 2.08 INTAKE COMPLETE engine-cylinder-head
Data sheet
- Type
- Complete
- Engine Make/Size
- Ford Small Block
- Emission
- Non-Emissions
- Finish
- Polished
- Material
- Aluminum
- Usage
- Racing
- Cylinder Head Type
- Standard
- Grade Type
- Performance
- Preparation
- Bolt On (Not Required)
- Camshaft Type
- Hydraulic Roller
- Family
- E-Series
- Series
- E-Series
- CNC Ported
- No
- Combustion Chamber Volume
- 60 CCM
- Construction Type
- Complete
- Deck Thickness
- 0.625 IN
- Guide Plates Included
- Yes
- Quantity
- Set of 2
- Retainer Included
- Yes
- Valve Included
- Yes
- Valve Springs Included
- Yes
- Head Casting Number
- N/A
- Horsepower
- 400-525 HJ
- Exhaust Port Location
- Standard
- Exhaust Runner Volume
- 62 CCM
- Exhaust Valve Diameter
- 1.60 IN
- Guide Material
- Manganese Bronze
- Guide Plate Material
- Hardened Steel
- Intake Runner Volume
- 205 CCM
- Intake Valve Diameter
- 2.08 IN
- Push Rod Diameter
- (Suggested) 0.3125 IN
- Rocker Stud Diameter
- 0.375 IN
- Seat Angle
- Exhaust 45 deg/Intake 45 DD
- Seat Material
- Ductile Iron
- Valve Angle
- 20 DD
- Valve Spring Diameter
- 1.55 IN
- Valve Spring Maximum Lift
- 0.650 IN
- Valve Stem Diameter
- 0.3438 IN
Package dimensions
Width: 12.00 inch
Height: 9.00 inch
Depth: 25.00 inch
Weight: 64.80 lb
