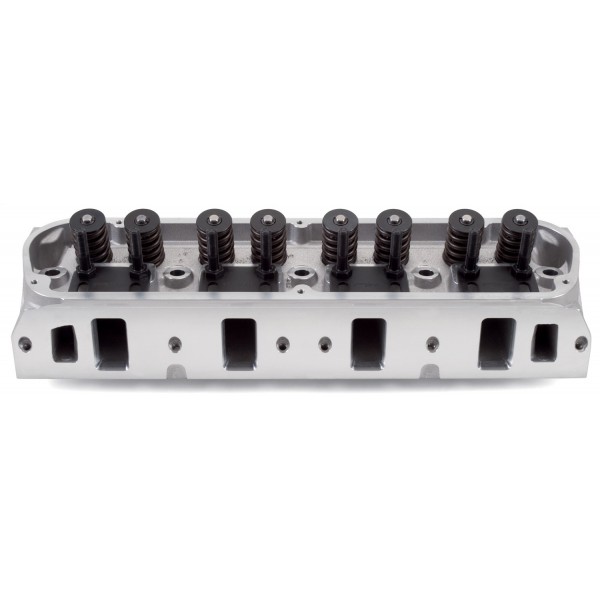

CYL HEAD E-STREET 170 SBF 2.02 INTAKE COMPLETE SINGLE
Availability:
Out-of-Stock
Description
The Edelbrock PN: 50259 E-Street cylinder heads are designed for Small-Block Ford applications. The Edelbrock E-Street cylinder heads offer American made quality and affordable performance. E-Street cylinder heads feature as-cast ports and are designed for entry-level street performance applications operating in the idle-to-5500 rpm range. The modern combustion chamber designs improve the combustion process and larger than stock intake and exhaust ports move more air through your engine for improve efficiency. For use on pre-pollution controlled vehicles only.
Ford:Small-Block Windsor:289 (4.7L)/302 (5.0L)/351 (5.8L)
Ford:Small-Block Windsor:289 (4.7L)/302 (5.0L)/351 (5.8L)
CYL HEAD E-STREET 170 SBF 2.02 INTAKE COMPLETE SINGLE - Part number: EDL-50259 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 50259 - CYL HEAD E-STREET 170 SBF 2.02 INTAKE COMPLETE SINGLE engine-cylinder-head
Data sheet
- Type
- Complete
- Engine Make/Size
- Ford Small Block
- Emission
- Non-Emissions
- Finish
- Satin
- Material
- Aluminum
- Usage
- Street/Performance
- Cylinder Head Type
- Standard
- Grade Type
- Performance
- Preparation
- Bolt On (Not Required)
- CNC Ported
- No
- Combustion Chamber Volume
- 60.0 CCM
- Deck Thickness
- 0.625 IN
- Guide Plates Included
- Yes
- Head Casting Number
- 6025P
- Exhaust Valve Diameter
- 1.600 IN
- Guide Plate Material
- Hardened Steel
- Intake Runner Volume
- 170.0 CCM
- Intake Valve Diameter
- 2.020 IN
- Push Rod Diameter
- 0.312 IN
- Rocker Stud Diameter
- 0.375 IN
- Valve Angle
- 20 DD
- Valve Spring Diameter
- 1.460 IN
- Valve Spring Maximum Lift
- 0.550 IN
- Valve Stem Diameter
- 0.341 IN
- Deck Height
- 9.5 IN
Package dimensions
Width: 12.00 inch
Height: 9.00 inch
Depth: 25.00 inch
Weight: 32.30 lb
