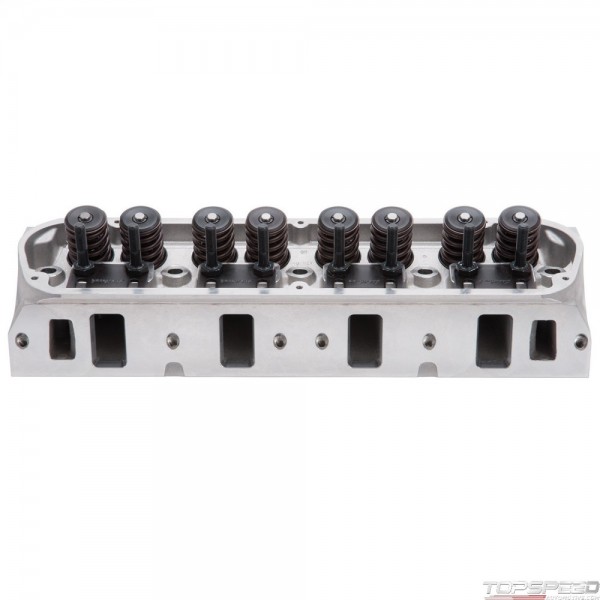

1pr CYL HEAD E-STREET SBF 1.90 INTAKE (COMPLETE PAIR)
Availability:
Qty: 32, Delivery time: 8 working days
Description
The Edelbrock PN: 5023 E-Street cylinder heads are designed for Ford 289-351 W V8 applications. The Edelbrock E-Street cylinder heads offer American made quality and affordable performance. E-Street cylinder heads feature as-cast ports and are designed for entry-level street performance applications operating in the idle-to-5500 rpm range. The modern combustion chamber designs improve the combustion process and larger than stock intake and exhaust ports move more air through your engine for improve efficiency. For use on pre-pollution controlled vehicles only.
Ford:Small-Block Windsor:289 (4.7L)/302 (5.0L)/351 (5.8L)
Ford:Small-Block Windsor:289 (4.7L)/302 (5.0L)/351 (5.8L)
1pr CYL HEAD E-STREET SBF 1.90 INTAKE (COMPLETE PAIR) - Part number: EDL-5023 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 5023 - 1pr CYL HEAD E-STREET SBF 1.90 INTAKE (COMPLETE PAIR) engine-cylinder-head
Data sheet
- Type
- Complete
- Engine Make/Size
- Ford Small Block
- Emission
- Non-Emissions
- Finish
- Satin
- Material
- Aluminum
- Usage
- Street/Performance
- Cylinder Head Type
- Standard
- Grade Type
- Performance
- Preparation
- Bolt On (Not Required)
- Camshaft Type
- Flat Tappet
- Family
- E-Street
- Series
- E-Street
- CNC Ported
- No
- Combustion Chamber Volume
- 60 CCM
- Construction Type
- Complete
- Deck Thickness
- 0.625 IN
- EGR Port
- No
- Guide Plates Included
- Yes
- Quantity
- Set of 2
- Retainer Included
- Yes
- Valve Included
- Yes
- Valve Springs Included
- Yes
- Horsepower
- 200-400 HJ
- Exhaust Port Location
- Standard
- Exhaust Runner Volume
- 60 CCM
- Exhaust Valve Diameter
- 1.60 IN
- Guide Material
- Manganese Bronze
- Guide Plate Material
- Hardened Steel
- Intake Runner Volume
- 170 CCM
- Intake Valve Diameter
- 1.90 IN
- Push Rod Diameter
- (Suggested) 0.3125 IN
- Rocker Stud Diameter
- 0.375 IN
- Seat Angle
- Exhaust 45 deg/Intake 45 DD
- Seat Material
- Ductile Iron
- Valve Angle
- 12 DD
- Valve Spring Diameter
- 1.46 IN
- Valve Spring Maximum Lift
- 0.550 IN
- Valve Stem Diameter
- 0.341 IN
Package dimensions
Width: 11.50 inch
Height: 8.50 inch
Depth: 22.00 inch
Weight: 64.85 lb
