1 PAIR CYL HEAD FORD FLATHEAD EARLY MODEL HIGH LIFT/LARGE CHAMBER BLOCK LETTER L
Availability:
Out-of-Stock
Description

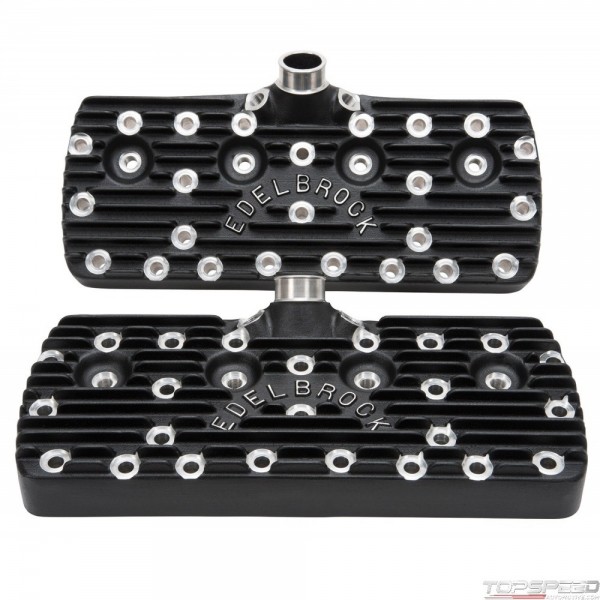

The Edelbrock PN: 11283 Ford Flatheads feature the original Edelbrock script logo design for Fords and Mercurys, and are casted at the Edelbrock Foundry in the USA of T-6 tempered A356 aluminum. The Edelbrock PN: 11283 heads are rugged, ribbed internally and externally, with a large water capacity and excellent breathing characteristics. The Edelbrock PN: 11283 Ford Flatheads High Lift/Large Chamber version feature a new 'raised roof' combustion chamber design that is CNC machined for high lift cams and is perfect for reducing compression in supercharger applications or on low octane fuel. High Lift heads have increased valve clearance and increased flow capacity.
Ford:Flathead:221 (3.6L)/239 (3.9L),Mercury:Flathead:221 (3.6L)/239 (3.9L)
Ford:Flathead:221 (3.6L)/239 (3.9L),Mercury:Flathead:221 (3.6L)/239 (3.9L)
1 PAIR CYL HEAD FORD FLATHEAD EARLY MODEL HIGH LIFT/LARGE CHAMBER BLOCK LETTER L - Part number: EDL-11283 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 11283 - 1 PAIR CYL HEAD FORD FLATHEAD EARLY MODEL HIGH LIFT/LARGE CHAMBER BLOCK LETTER L engine-cylinder-head
Data sheet
- Type
- Standard
- Engine Make/Size
- Ford Flathead V8
- Emission
- N/A
- Finish
- Black Powder Coated
- Material
- Aluminum
- Usage
- Street/Performance
- Cylinder Head Type
- Standard
- Grade Type
- Performance
- Preparation
- Requires Professional Preparation (Bare)
- Family
- Flathead
- Series
- Flathead
- CNC Ported
- Yes
- Combustion Chamber Volume
- 74 CCM
- Construction Type
- Flathead
- Deck Thickness
- 0.375 IN
- EGR Port
- No
- Guide Plates Included
- No
- Quantity
- Set of 2
- Retainer Included
- No
- Valve Chamber Depth Machined
- 0.480 IN
- Valve Included
- No
- Valve Springs Included
- No
Package dimensions
Width: 18.10 inch
Height: 8.30 inch
Depth: 23.10 inch
Weight: 30.55 lb
