POLISHED (NR) 49-53 FORD/MERC FLAT HEADS

Manufacturer: EDELBROCK
Part number: 11151
MPN: 11151
UPC: 085347111510
Availability: Out-of-Stock
£0.00
Tax included

Call to check: 0044 (0) 1933 225 564

Description

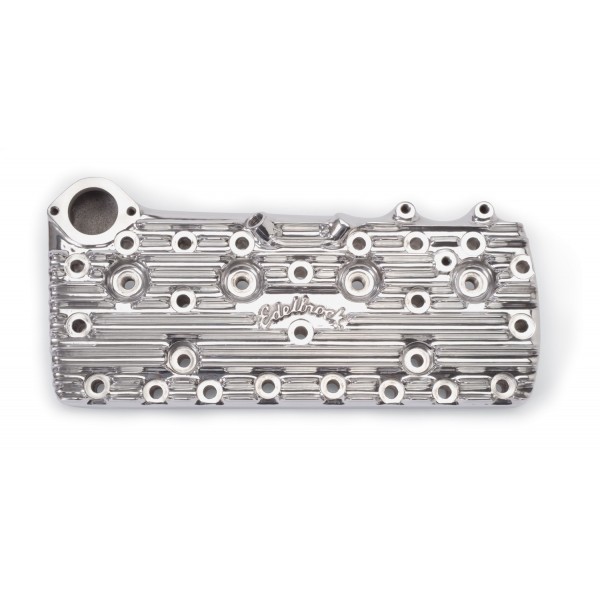

The Edelbrock PN: 11151 Ford Flatheads feature the original Edelbrock script logo design for Fords and Mercurys, and are casted at the Edelbrock Foundry in the USA of T-6 tempered A356 aluminum. The Edelbrock PN: 1115 heads are rugged, ribbed internally and externally, with a large water capacity and excellent breathing characteristics. The 65cc heads support 8.0:1 compression ratio on blocks with a 3/16in. base relief (stock bore and stroke), compression ratio increase is approximately 3/10 of a percent with each 1/8in. stroke.

Ford:Flathead:239 (3.6L)/255 (4.2L),Mercury:Flathead:239 (3.6L)/255 (4.2L)

POLISHED (NR) 49-53 FORD/MERC FLAT HEADS - Part number: EDL-11151 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 11151 - POLISHED (NR) 49-53 FORD/MERC FLAT HEADS engine-cylinder-head

Data sheet

Type
Bare
Engine Make/Size
Ford Flathead V8
Emission
Non-Emissions
Finish
Polished Finish
Material
Aluminum
Usage
Street/Performance
Cylinder Head Type
Standard
Grade Type
Performance
Preparation
Requires Professional Preparation (Bare)
CNC Ported
Yes
Combustion Chamber Volume
65.0 CCM
Guide Plates Included
No
Head Casting Number
1115F

Package dimensions

Width: 14.62 inch
Height: 6.88 inch
Depth: 23.12 inch
Weight: 30.60 lb
