1 pr. 49-53 FORD/MERC FLAT HEADS
Availability:
Out-of-Stock
Description

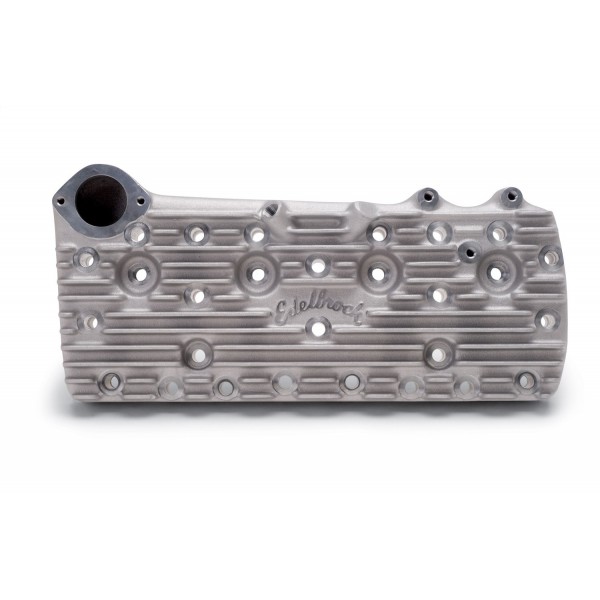

The Edelbrock PN: 1115 Ford Flatheads feature the original Edelbrock script logo design for Fords and Mercurys, and are casted at the Edelbrock Foundry in the USA of T-6 tempered A356 aluminum. The Edelbrock PN: 1115 heads are rugged, ribbed internally and externally, with a large water capacity and excellent breathing characteristics. The 65cc heads support 8.0:1 compression ratio on blocks with a 3/16in. base relief (stock bore and stroke), compression ratio increase is approximately 3/10 of a percent with each 1/8in. stroke.
Ford:Flathead:239 (3.6L)/255 (4.2L),Mercury:Flathead:239 (3.6L)/255 (4.2L)
Ford:Flathead:239 (3.6L)/255 (4.2L),Mercury:Flathead:239 (3.6L)/255 (4.2L)
1 pr. 49-53 FORD/MERC FLAT HEADS - Part number: EDL-1115 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 1115 - 1 pr. 49-53 FORD/MERC FLAT HEADS engine-cylinder-head
Data sheet
- Type
- Bare
- Engine Make/Size
- Ford Flathead V8
- Emission
- Non-Emissions
- Finish
- Satin
- Material
- Aluminum
- Usage
- Street/Performance
- Cylinder Head Type
- Standard
- Grade Type
- Performance
- Preparation
- Requires Professional Preparation (Bare)
- Family
- Flathead
- Series
- Flathead
- CNC Ported
- No
- Combustion Chamber Volume
- 65 CCM
- Construction Type
- Flathead
- Deck Thickness
- 0.375 IN
- EGR Port
- No
- Guide Plates Included
- No
- Quantity
- Set of 2
- Retainer Included
- No
- Valve Chamber Depth Machined
- 0.415 IN
- Valve Included
- No
- Valve Springs Included
- No
Package dimensions
Width: 8.00 inch
Height: 3.50 inch
Depth: 26.60 inch
Weight: 31.35 lb
