STUD KIT, CYL HEAD LSR

Manufacturer: EDELBROCK
Part number: 8510
MPN: 8510
UPC: 085347085101
Availability: Out-of-Stock
£0.00
Tax included

Call to check: 0044 (0) 1933 225 564

Description

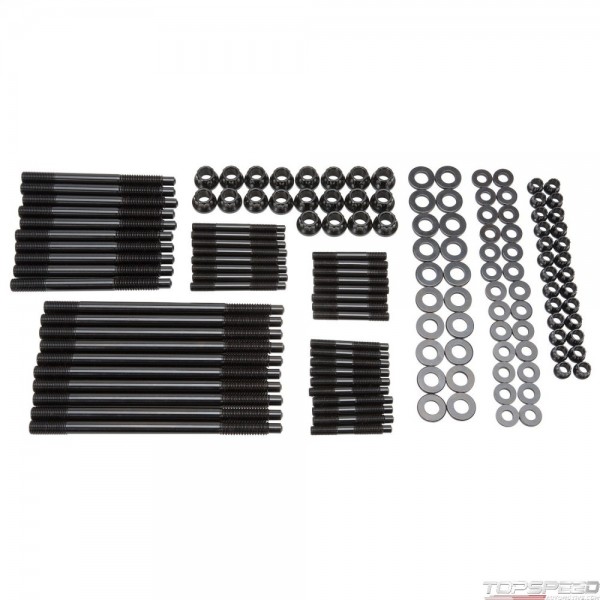

This head stud kit is required when using Edelbrock LS-R cylinder heads PN: 770468 and PN: 770469 on GM LSX engine blocks. Includes 10 7/16in. long studs, 10 7/16in. short studs, 8 5/16in. exhaust studs, 10 5/16in. intake flange studs, 8 5/16in. valley studs, 20 7/16in. washers with nuts and 26 5/16in. washers with nuts.

Chevrolet:Gen III LS-R Race:-,Chevrolet:Gen IV LS-R Race:-

STUD KIT, CYL HEAD LSR - Part number: EDL-8510 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 8510 - STUD KIT, CYL HEAD LSR engine-cylinder-head-stud

Data sheet

Engine Make/Size
Chevy LSX
Finish
Black Oxide
Material
Chromoly
Length
(8-Valley) 2.35 in, (10-Intake) 2.40 in, (8-Outside) 3.00 in, (10-Short) 4.95 in, (10-Long) 7.37 IN
Washers Included
Yes
End 2 Thread Diameter
0.3125 IN
End 1 Thread Diameter
0.4375 IN
Grade
Performance
Quantity
Kit
Recommended Use
With Part #770468, #770469
End 1 Thread Type
Fine
End 2 Thread Type
Fine

Package dimensions

Width: 4.19 inch
Height: 2.56 inch
Depth: 8.75 inch
Weight: 7.25 lb
