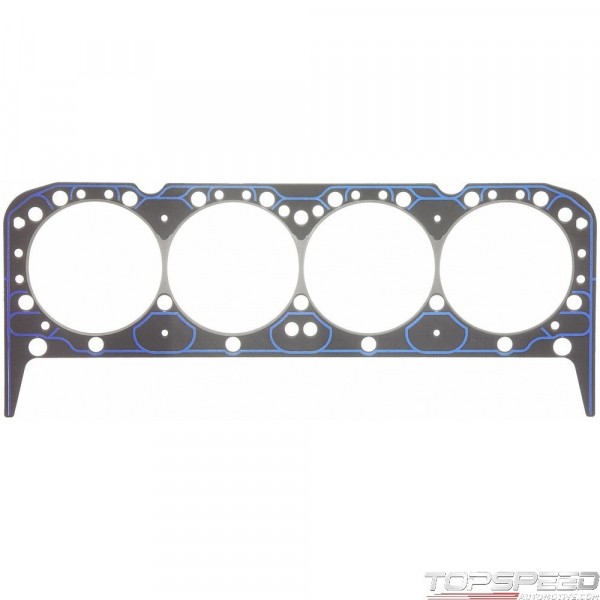

PERFORMANCE CYLINDER HEAD GASKET

Data sheet

Agricultural Equipment

N

Application Specific

N

Car Light Truck

N

Engine Specific

N

Feature 1

Accommodates high cylinder pressure and cylinder head movement

Feature 2

Wire ring design with stainless steel armor surrounds each cylinder

Feature 3

Highly concentrated sealing around combustion chamber

Feature 4

Validated for fit, form and function

Feature 5

Unsurpassed quality you can trust

Freight Class

55

Heavy Duty Truck

N

High Performance

Y

Industrial Off Highway Equipment

N

Marine

N

Medium Duty Truck

N

Motorcycle ATV

N

Non Vehicle Specific

N

Personal Watercraft

N

Small Engine

N

Snowmobile

N

Transmission Specific

N

Engine Family

Chevrolet V8 Small Block

Part Type

Cylinder Head Gaskets

What is in the box

In the box: cylinder head gasket

Bore Size (in.)

4.200

Combustion Chamber Volume (cc)

9.30

Combustion Seal Design

Pre-flattened steel wire

Engine Displacement

262, 265, 267, 283, 302, 305, 307, 327, 350, 400, 400 Race

Materials/Construction

Steel core laminate

Product Notes

Can be used on 400 race Engs.; Can be used on aluminum blocks w/liners; Minimal brinelling of aluminum heads

Thickness (in.)

0.041

Application Notes

Cast iron or aluminum heads
