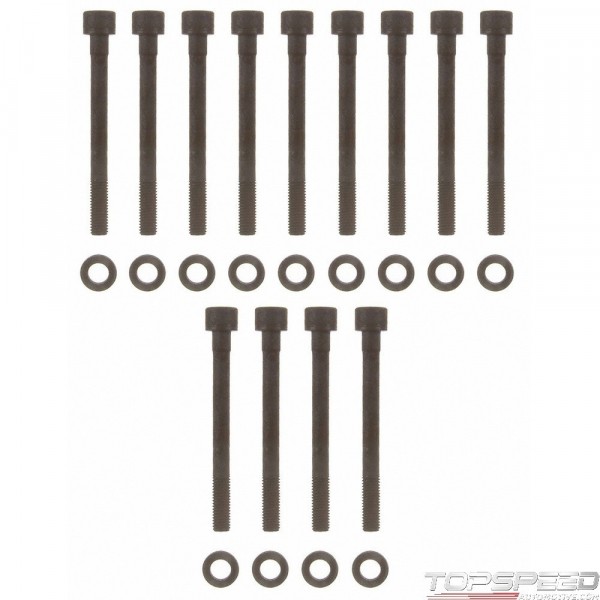

CYLINDER HEAD BOLT SET

Data sheet

Agricultural Equipment

N

Application Specific

Y

Car Light Truck

Y

Engine Specific

N

Feature 1

Meets or exceeds all original equipment specifications

Feature 2

Application-specific design ensures a perfect fit

Feature 3

Avoid risk associated with re-use of T-T-Y (torque to yield) head bolts

Feature 4

Validated for fit, form and function

Feature 5

Unsurpassed quality you can trust

Freight Class

55

Heavy Duty Truck

N

High Performance

N

Industrial Off Highway Equipment

N

Marine

N

Medium Duty Truck

N

Motorcycle ATV

N

Non Vehicle Specific

N

Personal Watercraft

N

Small Engine

N

Snowmobile

N

Transmission Specific

N

Set Description

Head Bolt Set

Part Design or Feature or Use

Head bolts w/Washers; Replacement recommended

Bolt Critical Length

127mm (Bolt 1); 116mm (Bolt 2)

Bolt Diameter

10mm (Bolt 1); 10mm (Bolt 2)

Bolt Head Size

10mm (Bolt 1); 10mm (Bolt 2)

Bolt Pitch

1.50 (Bolt 1); 1.50 (Bolt 2)

Bolt Thread Length

30mm (Bolt 1); 27mm (Bolt 2)

Bolt Thread Pitch

1.50 (Bolt 1); 1.50 (Bolt 2)
