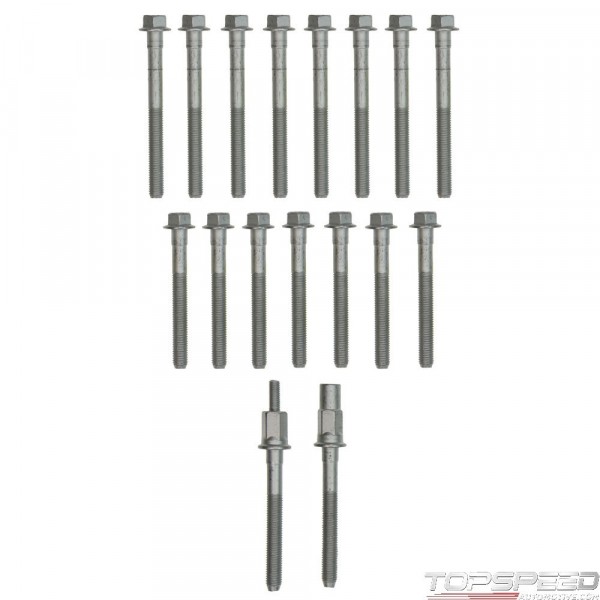

CYLINDER HEAD BOLT SET

Data sheet

Agricultural Equipment

N

Application Specific

Y

Car Light Truck

Y

Engine Specific

N

Feature 1

Meets or exceeds all original equipment specifications

Feature 2

Application-specific design ensures a perfect fit

Feature 3

Avoid risk associated with re-use of T-T-Y (torque to yield) head bolts

Feature 4

Validated for fit, form and function

Feature 5

Unsurpassed quality you can trust

Freight Class

55

Heavy Duty Truck

N

High Performance

N

Industrial Off Highway Equipment

N

Marine

N

Medium Duty Truck

N

Motorcycle ATV

N

Non Vehicle Specific

N

Personal Watercraft

N

Small Engine

N

Snowmobile

N

Transmission Specific

N

Set Description

Head Bolt Set

Part Design or Feature or Use

Replacement recommended

Bolt Critical Length

108mm (Bolt 1); 92mm (Bolt 2); 91mm (Bolt 3); 91mm (Bolt 4)

Bolt Diameter

11mm (Bolt 1); 11mm (Bolt 2); 11mm (Bolt 3); 11mm (Bolt 4)

Bolt Head Size

15mm (Bolt 1); 15mm (Bolt 2); 15mm (Bolt 3); 15mm (Bolt 4)

Bolt Pitch

1.50 (Bolt 1); 1.50 (Bolt 2); 1.50 (Bolt 3); 1.50 (Bolt 4)

Bolt Thread Length

60mm (Bolt 1); 65mm (Bolt 2); 60mm (Bolt 3); 65mm (Bolt 4)

Bolt Thread Pitch

1.50 (Bolt 1); 1.50 (Bolt 2); 1.50 (Bolt 3); 1.50 (Bolt 4)
