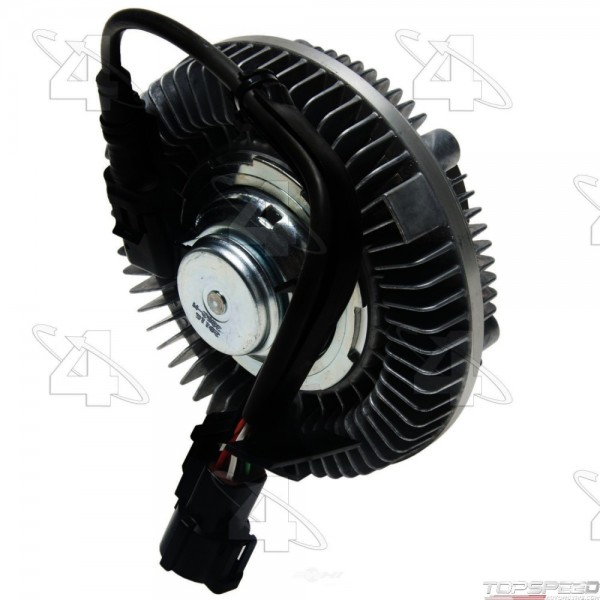

Reverse Rotation Severe Duty Electronic Fan Clutch

Manufacturer: FOUR SEASONS
Part number: 46030
MPN: 46030
UPC: 713602425132
Availability: Last items in stock
£384.55
Tax included

Qty: 1, Delivery time: 7 working days

Description

Designed, tested, and built by application; OE performance, fit, and appearance; Precision machined; Out of box installation

Ford E Series Fullsize Van (10-04); E Series Medium Duty Van (10-04); Excursion (05-03); F Series Fullsize Pickup (07-03); F Series Medium Duty Pickup (07-03) >> Ford Medium Duty F450 (07-03); F550 (07-03)

Reverse Rotation Severe Duty Electronic Fan Clutch - Part number: F/S-46030 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 46030 - Reverse Rotation Severe Duty Electronic Fan Clutch engine-cooling-fan-clutch

Data sheet

Description
Fan Clutches
Bolt Quantity
6
Bolt Thread
5/16-18 Hole
Fan Mount Dia. IN
5.00
Clutch Type
D - Severe Duty & Truck Fan Drive
Drawing Type
D
Duty Rating
Electro-Viscous
Electronic Clutch?
Yes
Fan Bolt Circle IN
6
Fan Bolt Circle MM
152.4
Fan Mount Dia. MM
127
Fan Mount Height MM
48

Package dimensions

Width: 8.75 inch
Height: 5.50 inch
Depth: 19.25 inch
Weight: 8.20 lb
