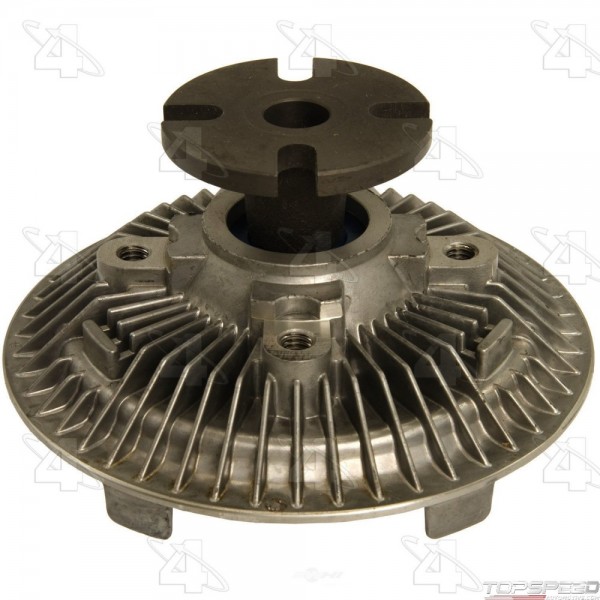

Standard Rotation Thermal Standard Duty Fan Clutch

Manufacturer: FOUR SEASONS
Part number: 36901
MPN: 36901
UPC: 713602417335
Availability: Out-of-Stock
£68.95
Tax included

Call to check: 0044 (0) 1933 225 564

Description

Designed, tested, and built by application; OE performance, fit, and appearance; Precision machined; Out of box installation

AMC Eagle (88) >> Chevy S10 Blazer (85-83); S10 Pickup (85-82) >> GMC S15 Jimmy (85-83); S15 Pickup (85-82) >> Jeep Cherokee (86-84); CJ Series (86-80); Comanche (86); Scrambler (85-81); Wagoneer (87-84); Wrangler (90-87)

Standard Rotation Thermal Standard Duty Fan Clutch - Part number: F/S-36901 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 36901 - Standard Rotation Thermal Standard Duty Fan Clutch engine-cooling-fan-clutch

Data sheet

Description
Fan Clutches
Bolt Quantity
4
Bolt Thread
5/16-18 Hole
Fan Mount Dia. IN
2.621
Clutch Type
B - Non-Thermal & Std Thermal
Drawing Type
B
Duty Rating
Standard
Electronic Clutch?
Non Electronic
Fan Bolt Circle IN
3.25
Fan Bolt Circle MM
82.6
Fan Mount Dia. MM
66.6
Fan Mount Height MM
38.8

Package dimensions

Width: 6.25 inch
Height: 6.25 inch
Depth: 4.25 inch
Weight: 2.66 lb
