SBC CONNECTING RODS 5.7 HEX
Availability:
Out-of-Stock
Description

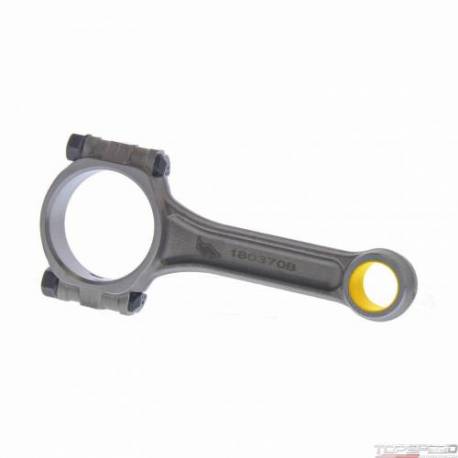

Connecting Rods, 4340, I-Beam, Thru-Bolt, 5.700 in. Length, 475 HP, Chevy, Small Block, Set of 8
Summit Racing performance I-beam connecting rods incorporate all the best features of an I-beam rod, including some strength-adders found in H-beam designs. These connecting rods are perfect for the street/strip racer who wants a little extra insurance with a forged 4340 steel construction, precision-balanced to +/-1 gram. They feature a precision-aligned cap design with either 3/8 in. thru-bolts or special hollow dowels with cap screw bolts to greatly increase strength and horsepower capabilities. The lightweight I-beam design keeps rotating mass low for quick rpm. Make Summit Racing your go-to for your high-performance parts and accessories.
Summit Racing performance I-beam connecting rods incorporate all the best features of an I-beam rod, including some strength-adders found in H-beam designs. These connecting rods are perfect for the street/strip racer who wants a little extra insurance with a forged 4340 steel construction, precision-balanced to +/-1 gram. They feature a precision-aligned cap design with either 3/8 in. thru-bolts or special hollow dowels with cap screw bolts to greatly increase strength and horsepower capabilities. The lightweight I-beam design keeps rotating mass low for quick rpm. Make Summit Racing your go-to for your high-performance parts and accessories.
SBC CONNECTING RODS 5.7 HEX - Part number: SUM-180370B - for American Cars - delivery to the UK and the EU
Manufacturer part number: 180370B - SBC CONNECTING RODS 5.7 HEX engine-connecting-rod
Data sheet
- Notes
- Custom pistons are required when using connecting rods with any length other than OE length.
- Quantity
- Sold as a set of 8.
- Connecting Rod Length Center to Center (in)
- 5.700 in.
- Connecting Rod Beam Style
- I-beam
- Connecting Rod Material
- Forged 4340 steel
- Connecting Rod Finish
- Polished and shot-peened
- Wrist Pin Style
- Floating
- Rod Journal Diameter (in)
- 2.100 in.
- Pin End Bore Diameter
- 0.927 in.
- Clearanced for Stroker
- No
- Cap Retention Style
- Through-bolt
- Connecting Rod Bolt Brand
- ARP
- Connecting Rod Bolt Diameter
- 3/8 in.
- Connecting Rod Bolt Material
- 8740 chromoly steel
- Fastener Tensile Strength (psi)
- 180,000 psi
- Connecting Rod Bolt Head Style
- Hex head
- Advertised Horsepower Rating
- 475 hp
- Weight Matched Set
- Yes
- Remanufactured
- No
- Magnafluxed
- No
- Big End Bore Diameter (in.)
- 2.2250 in.
- Big End Width (in.)
- 0.940 in.
Package dimensions
Width: 10.00 inch
Height: 10.00 inch
Depth: 10.00 inch
Weight: 10.00 lb
