CAMSHAFT PERF RPM HYD ROLLER SBF 351W

Manufacturer: EDELBROCK
Part number: 2281
MPN: 2281
UPC: 085347022816
Availability:
£476.56
Tax included

Qty: 8, Delivery time: 8 working days

Description

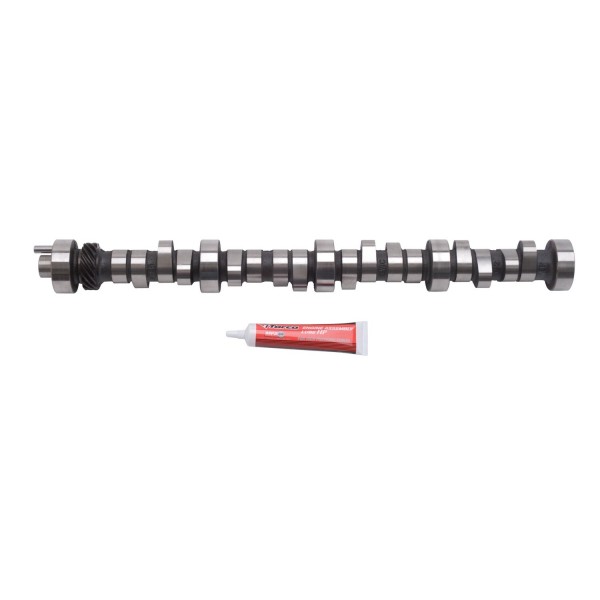

Edelbrock Rollin' Thunder Camshaft PN: 2281 is designed for 351W Ford V8 engines and produce optimum torque from the low-end to the mid-range. Rollin' Thunder camshafts match with Performer manifolds for vehicles operating from off-idle to 5500 rpm. They are smooth idling cams for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams. All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions. This cam produced 449HP and 413 Ft Lbs of Torque when paired with RPM Air-Gap Dual Quad intake manifold PN: 75354 and Performer RPM cylinder heads PN: 60255. Must use a high stall torque converter. Will not work with stock valve springs., Camshaft specifications:,Intake duration: 235 Degrees,Exhaust duration: 238 Degrees,Intake lift: .573in.,Exhaust lift: .582in.,Lobe separation: 112 Degree,Intake Center Line: 107,Vacuum: 10in.

Ford:Small-Block Windsor:351 (5.8L)

CAMSHAFT PERF RPM HYD ROLLER SBF 351W - Part number: EDL-2281 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 2281 - CAMSHAFT PERF RPM HYD ROLLER SBF 351W engine-camshaft

Data sheet

Engine Make/Size
Ford 351W
Usage
OEM
RPM Range
1500-6500
Lifter Type
Roller
Exh. Duration @ .050 in. (Deg)
238
Exh. Duration Advertised (Deg)
302
Exhaust Valve Lift
0.364 IN
Intake Duration @ 0.050 in.
235 Degree
Intake Duration Advertised
299
Intake Valve Lift
0.364 IN
Cam Type
Roller
Advertised Exhaust Duration
302 DD
Advertised Intake Duration
299 DD
Computer Controlled Compatible
No
Exhaust Duration at .050 inch Lift
238 DD
Lobe Separation
112 DD
Exhaust Valve Lift with Factory Rocker Arm Ratio
0.582 IN
Intake Duration at .050 Inch Lift
238 DD
Intake Valve Lift with Factory Rocker Arm Ratio
0.573 IN

Package dimensions

Width: 2.31 inch
Height: 2.31 inch
Depth: 24.38 inch
Weight: 10.50 lb
