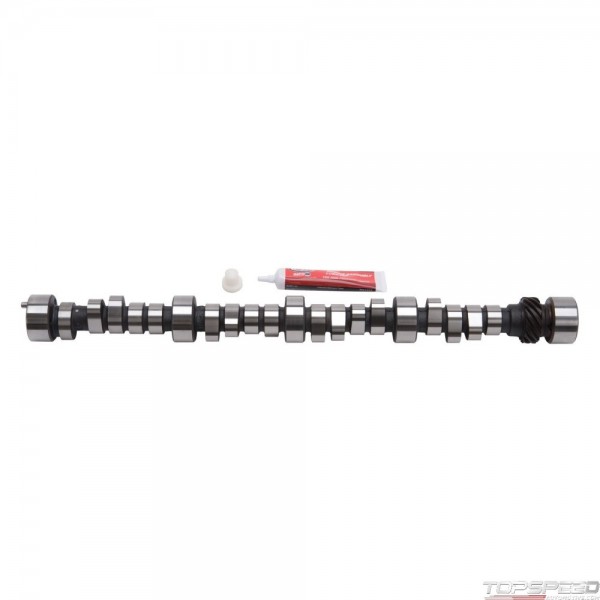

CAMSHAFT PERF RPM BBC HYDRAULIC ROLLER
Availability:
Qty: 5, Delivery time: 8 working days
Description
Edelbrock Rollin' Thunder Camshaft PN: 2261 is designed for 396-502 V8 Mark IV and Gen V engines from 1967-95 and produce optimum torque from the low-end to the mid-range. Rollin' Thunder camshafts match with Performer manifolds for vehicles operating from off-idle to 5500 rpm. They are smooth idling cams for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams. All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions. This cam produced 611HP and 573 Ft Lbs of Torque when paired with Victor Jr. intake manifold PN: 2902 and Victor Jr. 24 Degree cylinder heads PN: 77485 on a GM ZZ-502 short block. Not for 1965-66 Big Block Chevy's running a grooved rear cam journal. Use with a high stall torque converter and stock ratio rocker arms only., Camshaft specifications:,Intake duration: 236 Degrees,Exhaust duration: 245 Degrees,Intake lift: .625in.,Exhaust lift: .639in.,Lobe separation: 112 Degree,Intake Center Line: 109 Degree,Vacuum: 10in.
Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L),Chevrolet:Big-Block Gen V:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L)
Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L),Chevrolet:Big-Block Gen V:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L)
CAMSHAFT PERF RPM BBC HYDRAULIC ROLLER - Part number: EDL-2261 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 2261 - CAMSHAFT PERF RPM BBC HYDRAULIC ROLLER engine-camshaft
Data sheet
- Engine Make/Size
- Chevy 454
- Usage
- OEM
- RPM Range
- 1500-6500
- Lifter Type
- Roller
- Exh. Duration @ .050 in. (Deg)
- 245
- Exh. Duration Advertised (Deg)
- 329
- Exhaust Valve Lift
- 0.376 IN
- Intake Duration @ 0.050 in.
- 236 Degree
- Intake Duration Advertised
- 335
- Intake Valve Lift
- 0.368 IN
- Cam Type
- Roller
- Advertised Exhaust Duration
- 329 DD
- Advertised Intake Duration
- 335 DD
- Computer Controlled Compatible
- No
- Exhaust Duration at .050 inch Lift
- 245 DD
- Lobe Separation
- 112 DD
- Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.639 IN
- Intake Duration at .050 Inch Lift
- 236 DD
- Intake Valve Lift with Factory Rocker Arm Ratio
- 0.625 IN
Package dimensions
Width: 2.31 inch
Height: 2.31 inch
Depth: 24.38 inch
Weight: 10.65 lb
