CAM 7193

Manufacturer: EDELBROCK
Part number: 7194
MPN: 7194
UPC: 085347071944
Availability:
£624.55
Tax included

Qty: 10, Delivery time: 8 working days

Description

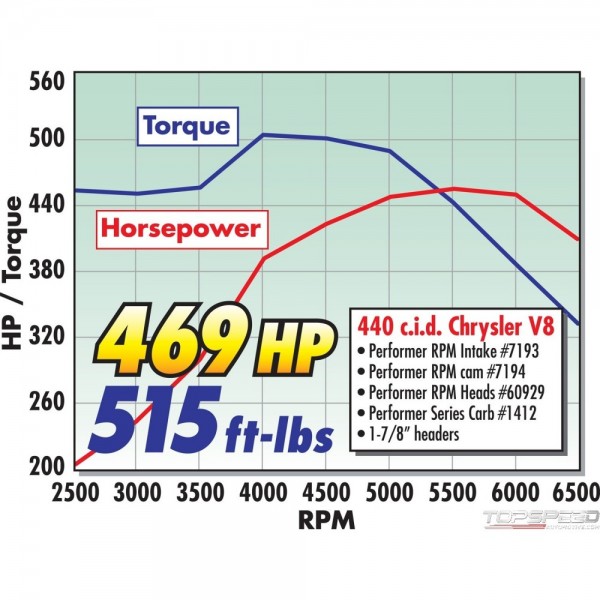

Edelbrock part PN: 7194 Performer RPM Camshaft is designed for 1968 & Later Chrysler 383-400-440 V-8 applications. This Edelbrock cam kit produced 469 HP & 515 ft-lbs. of torque when used with PN: 7193 intake and PN: 60929 cylinder heads on a 440 engine. The camshaft works well with high-performance's street applications, Performer RPM cams provide power from 1500 to 6500 rpm. This hydraulic lifter camshaft is dyno-matched to Performer RPM manifolds for high-rpm horsepower while still maintaining acceptable low-end torque. With 10 to 12 inches of manifold vacuum at idle, Performer RPM cams have more lift and duration than most street camshafts. Hydraulic flat tappet lifters are included with each Performer RPM camshaft., Camshaft Specifications:,Duration @ .050 Intake: 238 degrees ,Duration @ .050 Exhaust: 246 degrees,Lift @ Valve Intake: .480in.,Lift @ Valve Exhaust: .495in.,Lobe Separation: 110 Degrees,Intake Centerline: 105 Degrees,Idle Vacuum @ 1000 RPM's: 10in.

Chrysler:Big-Block RB Series:413 (6.8L)/426 (7.0L)/440 (7.2L)

CAM 7193 - Part number: EDL-7194 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 7194 - CAM 7193 engine-camshaft-and-lifter-kit

Data sheet

Engine Make/Size
Mopar 383-440
Usage
Street/Performance
RPM Range
1000-7000
Grade Type
Performance
Lifter Type
Hydraulic
Exh. Duration @ .050 in. (Deg)
246
Exh. Duration Advertised (Deg)
308
Exhaust Valve Lift
0.495 IN
Intake Duration @ 0.050 in.
238 Degree
Intake Duration Advertised
300
Intake Valve Lift
0.480 IN
Cam Type
Cast
Advertised Exhaust Duration
308 DD
Advertised Intake Duration
300 DD
Computer Controlled Compatible
No
Exhaust Duration at .050 inch Lift
246 DD
Intake Duration .050 Inch Lift
238 DD
Lifter Materials
Hardened Steel
Lobe Separation
110 DD

Package dimensions

Width: 8.00 inch
Height: 3.60 inch
Depth: 26.50 inch
Weight: 15.40 lb
