CAM 7181
Availability:
Last items in stock
Qty: 1, Delivery time: 8 working days
Description

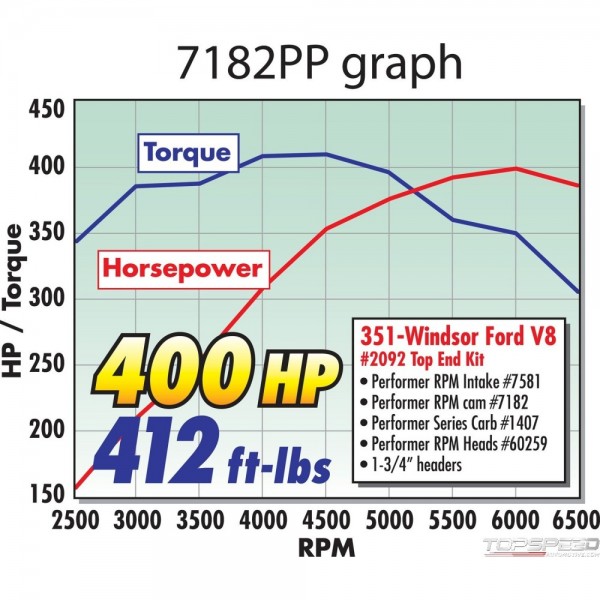

Edelbrock part PN: 7182 Performer RPM Camshaft is designed for Ford 351W V-8 applications. This Edelbrock cam kit produced 400 HP & 412 ft-lbs. of torque when used with PN: 7181 intake and PN: 60259 cylinder heads on a 351W engine. The camshaft works well with high-performance's street applications, Performer RPM cams provide power from 1500 to 6500 rpm. This hydraulic lifter camshaft is dyno-matched to Performer RPM manifolds for high-rpm horsepower while still maintaining acceptable low-end torque. With 10 to 12 inches of manifold vacuum at idle, Performer RPM cams have more lift and duration than most street camshafts. Hydraulic flat tappet lifters are included with each Performer RPM camshaft., Camshaft Specifications:,Duration @ .050 Intake: 234 degrees ,Duration @ .050 Exhaust: 244 degrees,Lift @ Valve Intake: .496in.,Lift @ Valve Exhaust: .520in.,Lobe Separation: 110 Degrees,Intake Centerline: 106 Degrees,Idle Vacuum @ 1000 RPM's: 11in.
Ford:Small-Block Windsor:351 (5.8L)
Ford:Small-Block Windsor:351 (5.8L)
CAM 7181 - Part number: EDL-7182 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 7182 - CAM 7181 engine-camshaft-and-lifter-kit
Data sheet
- Engine Make/Size
- Ford 5.8L/351W
- Usage
- Street/Performance
- RPM Range
- 1000-7000
- Grade Type
- Performance
- Lifter Type
- Hydraulic
- Exh. Duration @ .050 in. (Deg)
- 234
- Exh. Duration Advertised (Deg)
- 300
- Exhaust Valve Lift
- 0.520 IN
- Intake Duration @ 0.050 in.
- 224 Degree
- Intake Duration Advertised
- 290
- Intake Valve Lift
- 0.496 IN
- Cam Type
- Cast
- Advertised Exhaust Duration
- 300 DD
- Advertised Intake Duration
- 290 DD
- Computer Controlled Compatible
- No
- Exhaust Duration at .050 inch Lift
- 234 DD
- Intake Duration .050 Inch Lift
- 224 DD
- Lifter Materials
- Hardened Steel
- Lobe Separation
- 110 DD
Package dimensions
Width: 7.38 inch
Height: 3.38 inch
Depth: 25.63 inch
Weight: 14.80 lb
