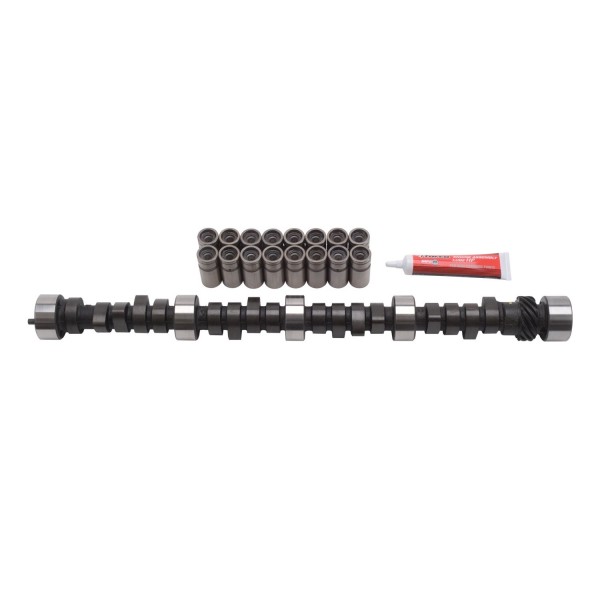

CAM 7161/7163

Manufacturer: EDELBROCK
Part number: 7162
MPN: 7162
UPC: 085347071623
Availability: Last items in stock
£480.55
Tax included

Qty: 2, Delivery time: 8 working days

Description

Edelbrock part PN: 7162 Performer RPM Camshaft is designed for big-block Chevy 396-427-454 V-8 applications. This Edelbrock cam kit produced 540 HP & 530 ft-lbs. of torque when used with PN: 7163 intake and PN: 60559 cylinder heads on a 454 engine. The camshaft works well with high-performance's street applications, Performer RPM cams provide power from 1500 to 6500 rpm. This hydraulic lifter camshaft is dyno-matched to Performer RPM manifolds for high-rpm horsepower while still maintaining acceptable low-end torque. With 10 to 12 inches of manifold vacuum at idle, Performer RPM cams have more lift and duration than most street camshafts. Hydraulic flat tappet lifters are included with each Performer RPM camshaft., Camshaft Specifications:,Duration @ .050 Intake: 240 degrees ,Duration @ .050 Exhaust: 246 degrees,Lift @ Valve Intake: .560in.,Lift @ Valve Exhaust: .573in.,Lobe Separation: 112 Degrees,Intake Centerline: 110 Degrees,Idle Vacuum @ 1000 RPM's: 10in.

Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L)

CAM 7161/7163 - Part number: EDL-7162 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 7162 - CAM 7161/7163 engine-camshaft-and-lifter-kit

Data sheet

Engine Make/Size
Chevy Big Block (396-502)
Usage
Street/Performance
RPM Range
1000-7000
Grade Type
Performance
Lifter Type
Hydraulic
Exh. Duration @ .050 in. (Deg)
246
Exh. Duration Advertised (Deg)
306
Exhaust Valve Lift
0.573 IN
Intake Duration @ 0.050 in.
240 Degree
Intake Duration Advertised
300
Intake Valve Lift
0.560 IN
Cam Type
Cast
Advertised Exhaust Duration
306 DD
Advertised Intake Duration
300 DD
Computer Controlled Compatible
No
Exhaust Duration at .050 inch Lift
246 DD
Intake Duration .050 Inch Lift
240 DD
Lifter Materials
Hardened Steel
Lobe Separation
112 DD

Package dimensions

Width: 8.00 inch
Height: 3.60 inch
Depth: 27.00 inch
Weight: 15.05 lb
