RPM CAM KIT-AMC PWR PKG
Availability:
Qty: 10, Delivery time: 8 working days
Description

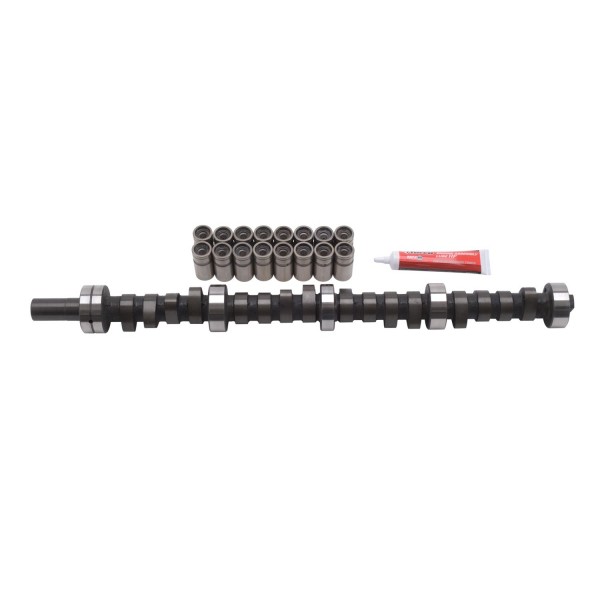

Edelbrock part PN: 7132 Performer RPM Camshaft is designed for AMC 343-401 V-8 applications. This Edelbrock cam kit produced 433 HP & 489 ft-lbs. of torque when used with PN: 7531 intake and PN: 60119 cylinder heads on a 401 engine. The camshaft works well with high-performance's street applications, Performer RPM cams provide power from 1500 to 6500 rpm. This hydraulic lifter camshaft is dyno-matched to Performer RPM manifolds for high-rpm horsepower while still maintaining acceptable low-end torque. With 10 to 12 inches of manifold vacuum at idle, Performer RPM cams have more lift and duration than most street camshafts. Hydraulic flat tappet lifters are included with each Performer RPM camshaft., Camshaft Specifications:,Duration @ .050 Intake: 234 degrees ,Duration @ .050 Exhaust: 244 degrees,Lift @ Valve Intake: .520in.,Lift @ Valve Exhaust: .544in.,Lobe Separation: 112 Degrees,Intake Centerline: 107 Degrees,Idle Vacuum @ 1000 RPM's: 11in.
AMC:-:290 (4.7L)/304 (5.0L)/360 (5.9L)/390 (6.4L)/401 (6.6L)
AMC:-:290 (4.7L)/304 (5.0L)/360 (5.9L)/390 (6.4L)/401 (6.6L)
RPM CAM KIT-AMC PWR PKG - Part number: EDL-7132 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 7132 - RPM CAM KIT-AMC PWR PKG engine-camshaft-and-lifter-kit
Data sheet
- Engine Make/Size
- AMC 290-401
- Usage
- Street/Performance
- RPM Range
- 1000-7000
- Grade Type
- Performance
- Lifter Type
- Hydraulic
- Exh. Duration @ .050 in. (Deg)
- 244
- Exh. Duration Advertised (Deg)
- 320
- Exhaust Valve Lift
- 0.544 IN
- Intake Duration @ 0.050 in.
- 234 Degree
- Intake Duration Advertised
- 310
- Intake Valve Lift
- 0.520 IN
- Cam Type
- Cast
- Computer Controlled Compatible
- No
- Exhaust Duration at .050 inch Lift
- 244 DD
- Intake Duration .050 Inch Lift
- 234 DD
- Lifter Materials
- Hardened Steel
- Lobe Separation
- 112 DD
Package dimensions
Width: 2.18 inch
Height: 2.18 inch
Depth: 24.25 inch
Weight: 15.80 lb
