CAM 7121
Availability:
Out-of-Stock
Description

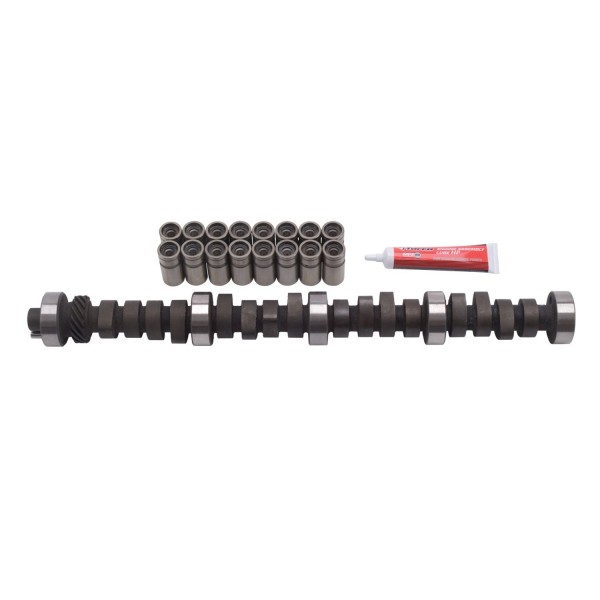

Edelbrock part PN: 7122 Performer RPM Camshaft is designed for small-block Ford 289-302 V-8 applications. This Edelbrock cam kit produced 367 HP & 340 ft-lbs. of torque when used with PN: 7121 intake and PN: 60259 cylinder heads on a 302 engine. The camshaft works well with high-performance's street applications, Performer RPM cams provide power from 1500 to 6500 rpm. This hydraulic lifter camshaft is dyno-matched to Performer RPM manifolds for high-rpm horsepower while still maintaining acceptable low-end torque. With 10 to 12 inches of manifold vacuum at idle, Performer RPM cams have more lift and duration than most street camshafts. Hydraulic flat tappet lifters are included with each Performer RPM camshaft., Camshaft Specifications:,Duration @ .050 Intake: 224 degrees ,Duration @ .050 Exhaust: 234 degrees,Lift @ Valve Intake: .496in.,Lift @ Valve Exhaust: .520in.,Lobe Separation: 112 Degrees,Intake Centerline: 107 Degrees,Idle Vacuum @ 1000 RPM's: 11in.
Ford:Small-Block Windsor:260 (4.3L)/289 (4.7L)/302 (5.0L)
CAM 7121 - Part number: EDL-7122 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 7122 - CAM 7121 engine-camshaft-and-lifter-kit
Data sheet
- Engine Make/Size
- Ford 260-302
- Usage
- Street/Performance
- RPM Range
- 1000-7000
- Grade Type
- Performance
- Lifter Type
- Hydraulic
- Exh. Duration @ .050 in. (Deg)
- 234
- Exh. Duration Advertised (Deg)
- 300
- Exhaust Valve Lift
- 0.520 IN
- Intake Duration @ 0.050 in.
- 224 Degree
- Intake Duration Advertised
- 290
- Intake Valve Lift
- 0.496 IN
- Cam Type
- Cast
- Advertised Exhaust Duration
- 300 DD
- Advertised Intake Duration
- 290 DD
- Computer Controlled Compatible
- No
- Exhaust Duration at .050 inch Lift
- 234 DD
- Intake Duration .050 Inch Lift
- 224 DD
- Lifter Materials
- Hardened Steel
- Lobe Separation
- 112 DD
Package dimensions
Width: 8.00 inch
Height: 3.60 inch
Depth: 27.00 inch
Weight: 14.55 lb
