CAM 7105
Availability:
Qty: 4, Delivery time: 8 working days
Description

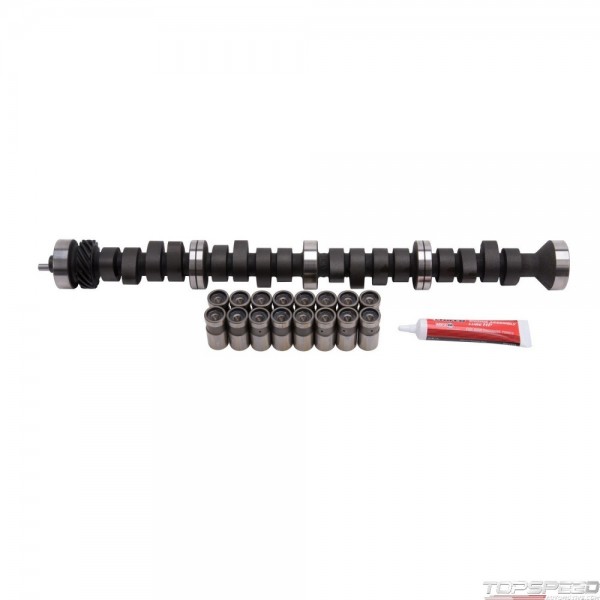

Edelbrock part PN: 7106 Performer RPM Camshaft is designed for Ford FE 390-428 V-8 applications. This Edelbrock cam kit produced 418 HP & 434 ft-lbs. of torque when used with PN: 7105 intake and PN: 60069 cylinder heads on a 390 engine. The camshaft works well with high-performance's street applications, Performer RPM cams provide power from 1500 to 6500 rpm. This hydraulic lifter camshaft is dyno-matched to Performer RPM manifolds for high-rpm horsepower while still maintaining acceptable low-end torque. With 10 to 12 inches of manifold vacuum at idle, Performer RPM cams have more lift and duration than most street camshafts. Hydraulic flat tappet lifters are included with each Performer RPM camshaft., Camshaft Specifications:,Duration @ .050 Intake: 236 degrees ,Duration @ .050 Exhaust: 236 degrees,Lift @ Valve Intake: .572in.,Lift @ Valve Exhaust: .572in.,Lobe Separation: 108 Degrees,Intake Centerline: 103 Degrees,Idle Vacuum @ 1000 RPM's: 11in.
Ford:FE:332 (5.4L)/352 (5.8L)/360 (5.9L)/390 (6.4L)/406 (6.6L)/410 (6.7L)/427 (7.0L)/428 (7.0L)
CAM 7105 - Part number: EDL-7106 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 7106 - CAM 7105 engine-camshaft-and-lifter-kit
Data sheet
- Engine Make/Size
- Ford 390-428
- Usage
- Street/Performance
- RPM Range
- 1000-7000
- Grade Type
- Performance
- Lifter Type
- Hydraulic
- Exh. Duration @ .050 in. (Deg)
- 236
- Exh. Duration Advertised (Deg)
- 296
- Exhaust Valve Lift
- 0.572 IN
- Intake Duration @ 0.050 in.
- 236 Degree
- Intake Duration Advertised
- 296
- Intake Valve Lift
- 0.572 IN
- Cam Type
- Cast
- Advertised Exhaust Duration
- 296 DD
- Advertised Intake Duration
- 296 DD
- Computer Controlled Compatible
- No
- Exhaust Duration at .050 inch Lift
- 236 DD
- Intake Duration .050 Inch Lift
- 236 DD
- Lifter Materials
- Hardened Steel
- Lobe Separation
- 108 DD
Package dimensions
Width: 7.38 inch
Height: 3.38 inch
Depth: 25.63 inch
Weight: 15.85 lb
