CAM KIT 5061
Availability:
Out-of-Stock
Description

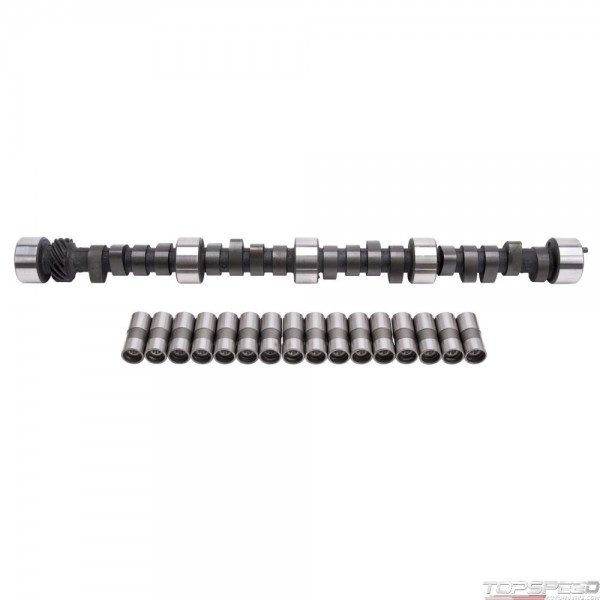

Edelbrock part PN: 5062 Torker-Plus Camshaft is designed for big-block Chevy 396-427-454 V-8 applications. The camshaft works well with Torker II manifolds for performance from 2500 to 6500 rpm, this camshaft is ideal for high-performance'street, drag or marine applications. Torker-Plus cams have a slightly rough idle and are not suitable for trucks or towing applications. Hydraulic flat tappet lifters are included with each camshaft., Camshaft Specifications:,Duration @ .050 Intake: 224 degrees ,Duration @ .050 Exhaust: 232 degrees,Lift @ Valve Intake: .527in.,Lift @ Valve Exhaust: .553in.,Lobe Separation: 114 Degrees,Intake Centerline: 109 Degrees
Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L)
Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L)
CAM KIT 5061 - Part number: EDL-5062 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 5062 - CAM KIT 5061 engine-camshaft-and-lifter-kit
Data sheet
- Engine Make/Size
- Chevy Big Block (396-502)
- Usage
- Street/Performance
- RPM Range
- 2000-9000
- Grade Type
- Performance
- Lifter Type
- Hydraulic
- Exh. Duration @ .050 in. (Deg)
- 232
- Exh. Duration Advertised (Deg)
- 304
- Exhaust Valve Lift
- 0.553 IN
- Intake Duration @ 0.050 in.
- 224 Degree
- Intake Duration Advertised
- 302
- Intake Valve Lift
- 0.527 IN
- Cam Type
- Cast
- Advertised Exhaust Duration
- 304 DD
- Advertised Intake Duration
- 302 DD
- Computer Controlled Compatible
- No
- Exhaust Duration at .050 inch Lift
- 232 DD
- Intake Duration .050 Inch Lift
- 224 DD
- Lifter Materials
- Hardened Steel
- Lobe Separation
- 114 DD
Package dimensions
Width: 8.00 inch
Height: 3.70 inch
Depth: 26.60 inch
Weight: 15.25 lb
