CAM KIT 5021
Availability:
Out-of-Stock
Description

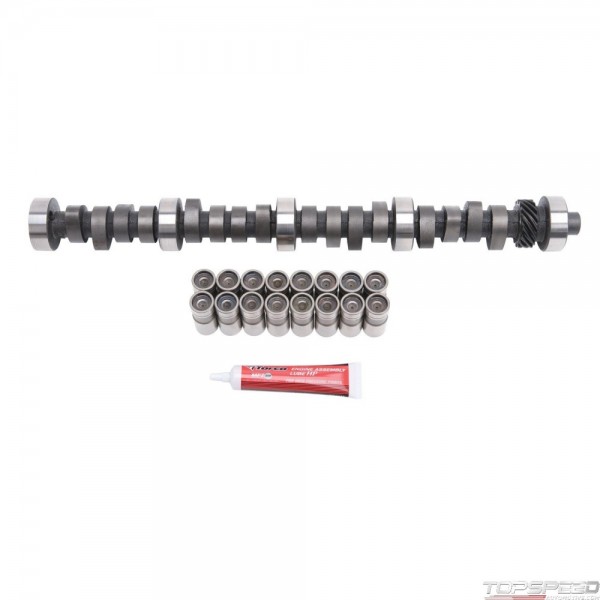

Edelbrock part PN: 5022 Torker-Plus Camshaft is designed for small-block Ford 289-302 V-8 applications. The camshaft works well with Torker II manifolds for performance from 2500 to 6500 rpm, this camshaft is ideal for high-performance'street, drag or marine applications. Torker-Plus cams have a slightly rough idle and are not suitable for trucks or towing applications. Hydraulic flat tappet lifters are included with each camshaft., Camshaft Specifications:,Duration @ .050 Intake: 214 degrees ,Duration @ .050 Exhaust: 224 degrees,Lift @ Valve Intake: .472in.,Lift @ Valve Exhaust: .496in.,Lobe Separation: 112 Degrees,Intake Centerline: 107 Degrees
Ford:Small-Block Windsor:260 (4.3L)/289 (4.7L)/302 (5.0L)
Ford:Small-Block Windsor:260 (4.3L)/289 (4.7L)/302 (5.0L)
CAM KIT 5021 - Part number: EDL-5022 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 5022 - CAM KIT 5021 engine-camshaft-and-lifter-kit
Data sheet
- Engine Make/Size
- Ford 260-302
- Usage
- Street/Performance
- RPM Range
- 2000-9000
- Grade Type
- Performance
- Lifter Type
- Hydraulic
- Exh. Duration @ .050 in. (Deg)
- 224
- Exh. Duration Advertised (Deg)
- 290
- Exhaust Valve Lift
- 0.496 IN
- Intake Duration @ 0.050 in.
- 214 Degree
- Intake Duration Advertised
- 280
- Intake Valve Lift
- 0.472 IN
- Cam Type
- Cast
- Advertised Exhaust Duration
- 290 DD
- Advertised Intake Duration
- 280 DD
- Computer Controlled Compatible
- No
- Exhaust Duration at .050 inch Lift
- 224 DD
- Intake Duration .050 Inch Lift
- 214 DD
- Lifter Materials
- Hardened Steel
- Lobe Separation
- 112 DD
Package dimensions
Width: 7.38 inch
Height: 3.38 inch
Depth: 25.63 inch
Weight: 15.40 lb
