CAM KIT S/B CHEV
Availability:
Out-of-Stock
Description

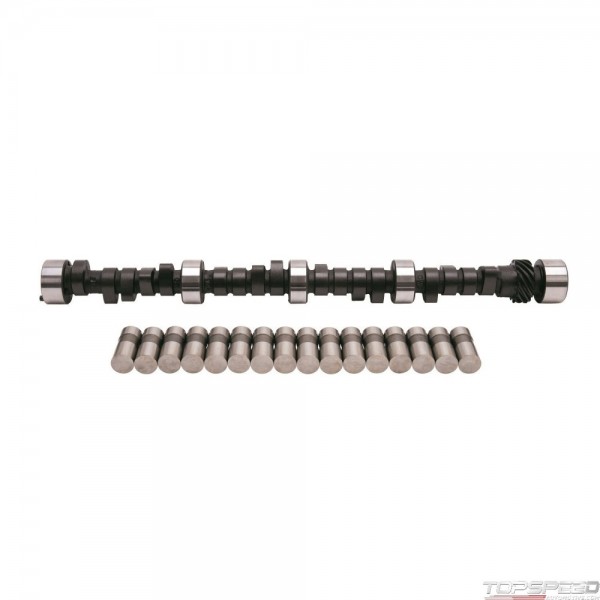

Edelbrock part PN: 5002 Torker-Plus Camshaft is designed for small-block Chevy 283-350 V-8 applications. The camshaft works well with Torker II manifolds for performance from 2500 to 6500 rpm, this camshaft is ideal for high-performance'street, drag or marine applications. Torker-Plus cams have a slightly rough idle and are not suitable for trucks or towing applications. Hydraulic flat tappet lifters are included with each camshaft., Camshaft Specifications:,Duration @ .050 Intake: 232 degrees ,Duration @ .050 Exhaust: 234 degrees,Lift @ Valve Intake: .488in.,Lift @ Valve Exhaust: .488in.,Lobe Separation: 108 Degrees,Intake Centerline: 106 Degrees
Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L)
Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L)
CAM KIT S/B CHEV - Part number: EDL-5002 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 5002 - CAM KIT S/B CHEV engine-camshaft-and-lifter-kit
Data sheet
- Engine Make/Size
- Chevy Small Block (262-400)
- Usage
- Street/Performance
- RPM Range
- 2000-9000
- Grade Type
- Performance
- Lifter Type
- Hydraulic
- Exh. Duration @ .050 in. (Deg)
- 234
- Exh. Duration Advertised (Deg)
- 300
- Exhaust Valve Lift
- 0.488 IN
- Intake Duration @ 0.050 in.
- 232 Degree
- Intake Duration Advertised
- 292
- Intake Valve Lift
- 0.488 IN
- Cam Type
- Cast
- Advertised Exhaust Duration
- 300 DD
- Advertised Intake Duration
- 292 DD
- Computer Controlled Compatible
- No
- Exhaust Duration at .050 inch Lift
- 234 DD
- Intake Duration .050 Inch Lift
- 232 DD
- Lifter Materials
- Hardened Steel
- Lobe Separation
- 108 DD
Package dimensions
Width: 8.00 inch
Height: 3.60 inch
Depth: 26.60 inch
Weight: 13.56 lb
