CAM KIT OLDS 350
Availability:
Out-of-Stock
Description

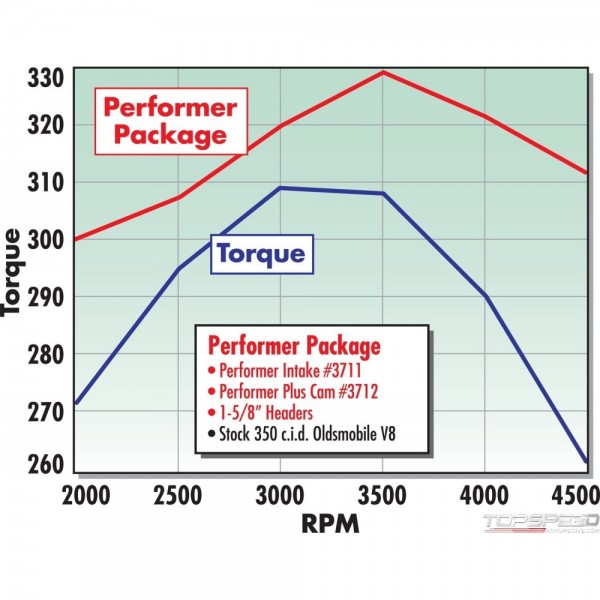

Edelbrock part PN: 3712 Performer-Plus camshaft is designed for small-block Oldsmobile 350-403 V-8 applications. This Edelbrock cam kit produced 330 ft-lbs. of torque when used with PN: 3711 intake and stock iron cylinder heads on a 350 engine. The camshaft will produce optimum torque from the low-end to the mid-range, Performer-Plus camshafts match with Performer manifolds for vehicles operating from off-idle to 5500 rpm. This Performer-Plus is a smooth idling cam for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. All camshafts include flat tappet lifters, assembly lube and instructions., Camshaft Specifications:,Duration @ .050 Intake: 204 degrees ,Duration @ .050 Exhaust: 214 degrees,Lift @ Valve Intake: .449in.,Lift @ Valve Exhaust: .473in.,Lobe Separation: 114 Degrees,Intake Centerline: 106 Degrees,Idle Vacuum @ 1000 RPM's: 16in.
Oldsmobile:Small-Block:350 (5.7L)/403 (6.6L)
Oldsmobile:Small-Block:350 (5.7L)/403 (6.6L)
CAM KIT OLDS 350 - Part number: EDL-3712 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 3712 - CAM KIT OLDS 350 engine-camshaft-and-lifter-kit
Data sheet
- Engine Make/Size
- Olds 307-403
- Usage
- Street/Performance
- RPM Range
- 0-6750
- Grade Type
- Performance
- Lifter Type
- Hydraulic
- Exh. Duration @ .050 in. (Deg)
- 214
- Exh. Duration Advertised (Deg)
- 290
- Exhaust Valve Lift
- 0.472 IN
- Intake Duration @ 0.050 in.
- 204 Degree
- Intake Duration Advertised
- 280
- Intake Valve Lift
- 0.448 IN
- Cam Type
- Cast
- Advertised Exhaust Duration
- 290 DD
- Advertised Intake Duration
- 280 DD
- Computer Controlled Compatible
- No
- Exhaust Duration at .050 inch Lift
- 204 DD
- Intake Duration .050 Inch Lift
- 204 DD
- Lifter Materials
- Hardened Steel
- Lobe Separation
- 114 DD
Package dimensions
Width: 8.00 inch
Height: 3.50 inch
Depth: 26.50 inch
Weight: 15.40 lb
