CAM 305 LG-4 V-8
Availability:
Out-of-Stock
Description

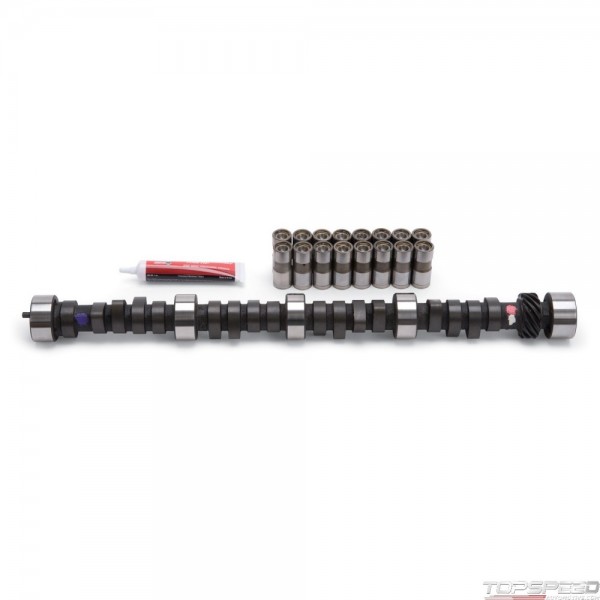

Edelbrock part PN: 3702 Performer-Plus camshaft is designed for small-block Chevy 305-350 T.B.I & LG-4 V-8 applications. This Edelbrock cam kit produced 245 ft-lbs. of torque when used with PN: 3701 intake and stock iron cylinder heads on a 350 engine. The camshaft will produce optimum torque from the low-end to the mid-range, Performer-Plus camshafts match with Performer manifolds for vehicles operating from off-idle to 5500 rpm. This Performer-Plus is a smooth idling cam for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. All camshafts include flat tappet lifters, assembly lube and instructions., Camshaft Specifications:,Duration @ .050 Intake: 194 degrees ,Duration @ .050 Exhaust: 214 degrees,Lift @ Valve Intake: .398in.,Lift @ Valve Exhaust: .442in.,Lobe Separation: 112 Degrees,Intake Centerline: 107 Degrees,Idle Vacuum @ 1000 RPM's: 16in.
Chevrolet:Small-Block Gen I:305 (5.0L)/350 (5.7L)
Chevrolet:Small-Block Gen I:305 (5.0L)/350 (5.7L)
CAM 305 LG-4 V-8 - Part number: EDL-3702 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 3702 - CAM 305 LG-4 V-8 engine-camshaft-and-lifter-kit
Data sheet
- Engine Make/Size
- Chevy Small Block (262-400)
- Usage
- Street/Performance
- RPM Range
- 0-6750
- Grade Type
- Performance
- Lifter Type
- Hydraulic
- Exh. Duration @ .050 in. (Deg)
- 214
- Exh. Duration Advertised (Deg)
- 264
- Exhaust Valve Lift
- 0.442 IN
- Intake Duration @ 0.050 in.
- 194 Degree
- Intake Duration Advertised
- 244
- Intake Valve Lift
- 0.398 IN
- Cam Type
- Cast
- CARB Executive Order Number
- D-215-19
- Advertised Exhaust Duration
- 264 DD
- Advertised Intake Duration
- 244 DD
- Computer Controlled Compatible
- Yes
- Exhaust Duration at .050 inch Lift
- 214 DD
- Intake Duration .050 Inch Lift
- 194 DD
- Lifter Materials
- Hardened Steel
- Lobe Separation
- 112 DD
Package dimensions
Width: 8.00 inch
Height: 3.50 inch
Depth: 26.50 inch
Weight: 13.80 lb
