CAM 383-440

Manufacturer: EDELBROCK
Part number: 2192
MPN: 2192
UPC: 085347021925
Availability:
£526.96
Tax included

Qty: 3, Delivery time: 2 working days

Qty: 5, Delivery time: 8 working days

Description

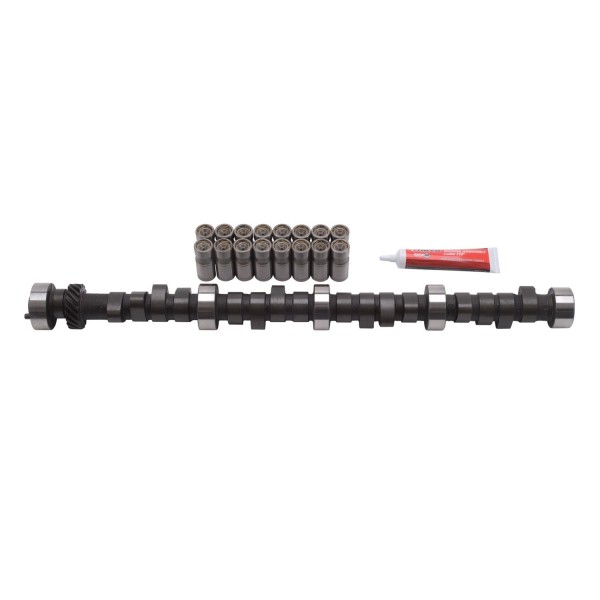

Edelbrock part PN: 2192 Performer-Plus camshaft is designed for 1968 and later big-block Chrysler 383-400-440 V-8 applications. This Edelbrock cam kit produced 427 ft-lbs. of torque when used with PN: 2191 intake and stock iron cylinder heads on a 440 engine. The camshaft will produce optimum torque from the low-end to the mid-range, Performer-Plus camshafts match with Performer manifolds for vehicles operating from off-idle to 5500 rpm. This Performer-Plus is a smooth idling cam for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. All camshafts include flat tappet lifters, assembly lube and instructions., Camshaft Specifications:,Duration @ .050 Intake: 204 degrees ,Duration @ .050 Exhaust: 214 degrees,Lift @ Valve Intake: .420in.,Lift @ Valve Exhaust: .442in.,Lobe Separation: 112 Degrees,Intake Centerline: 107 Degrees,Idle Vacuum @ 1000 RPM's: 14in.

Chrysler:Big-Block RB-Series:413 (6.8L)/426 (7.0L)/440 (7.2L)

CAM 383-440 - Part number: EDL-2192 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 2192 - CAM 383-440 engine-camshaft-and-lifter-kit

Data sheet

Engine Make/Size
Mopar 361-400
Usage
Street/Performance
RPM Range
0-6750
Grade Type
Performance
Lifter Type
Hydraulic
Exh. Duration @ .050 in. (Deg)
214
Exh. Duration Advertised (Deg)
280
Exhaust Valve Lift
0.442 IN
Intake Duration @ 0.050 in.
204 Degree
Intake Duration Advertised
270
Intake Valve Lift
0.420 IN
Cam Type
Cast
Advertised Exhaust Duration
280 DD
Advertised Intake Duration
270 DD
Computer Controlled Compatible
No
Exhaust Duration at .050 inch Lift
214 DD
Intake Duration .050 Inch Lift
204 DD
Lifter Materials
Hardened Steel
Lobe Separation
112 DD

Package dimensions

Width: 8.00 inch
Height: 3.50 inch
Depth: 26.50 inch
Weight: 15.60 lb
