CAM KIT FORD 289
Qty: 1, Delivery time: 2 working days
Qty: 22, Delivery time: 8 working days
Description

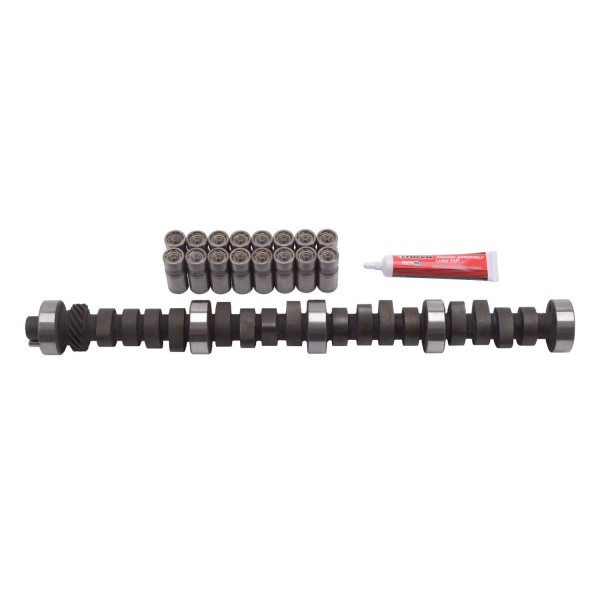

Edelbrock Performer-Plus Camshaft PN: 2122 is designed for 289-302 Ford V8 engines and produces optimum torque from the low-end to the mid-range. Performer-Plus camshafts should be matched with Performer manifolds for vehicles operating from off-idle to 5500 rpm. The Performer-Plus PN: 2122 is a smooth idling cam for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams. All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions. This cam produced 310HP and 260 Ft Lbs of Torque when paired with Performer 289 intake manifold PN: 2121 and Performer cylinder heads PN: 60329. Not for 1985 and later engines with roller lifters., Camshaft specifications:,Intake duration: 204 Degrees,Exhaust duration: 214 Degrees,Intake lift: .448in.,Exhaust lift: .472in.,Lobe separation: 112 Degree,Intake Center Line: 107 Degree,Vacuum: 16in.
Ford:Small-Block Windsor:289 (4.7L)/302 (5.0L)
CAM KIT FORD 289 - Part number: EDL-2122 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 2122 - CAM KIT FORD 289 engine-camshaft-and-lifter-kit
Data sheet
- Engine Make/Size
- Ford 260-302
- Usage
- Street/Performance
- RPM Range
- 0-6750
- Grade Type
- Performance
- Lifter Type
- Hydraulic
- Exh. Duration @ .050 in. (Deg)
- 214
- Exh. Duration Advertised (Deg)
- 280
- Exhaust Valve Lift
- 0.472 IN
- Intake Duration @ 0.050 in.
- 204 Degree
- Intake Duration Advertised
- 270
- Intake Valve Lift
- 0.448 IN
- Cam Type
- Cast
- Advertised Exhaust Duration
- 280 DD
- Advertised Intake Duration
- 270 DD
- Computer Controlled Compatible
- No
- Exhaust Duration at .050 inch Lift
- 214 DD
- Intake Duration .050 Inch Lift
- 214 DD
- Lifter Materials
- Hardened Steel
- Lobe Separation
- 112 DD
Package dimensions
Width: 8.00 inch
Height: 3.60 inch
Depth: 27.00 inch
Weight: 15.00 lb
