CAM KIT CHEV 229 V-6
Availability:
Out-of-Stock
Description

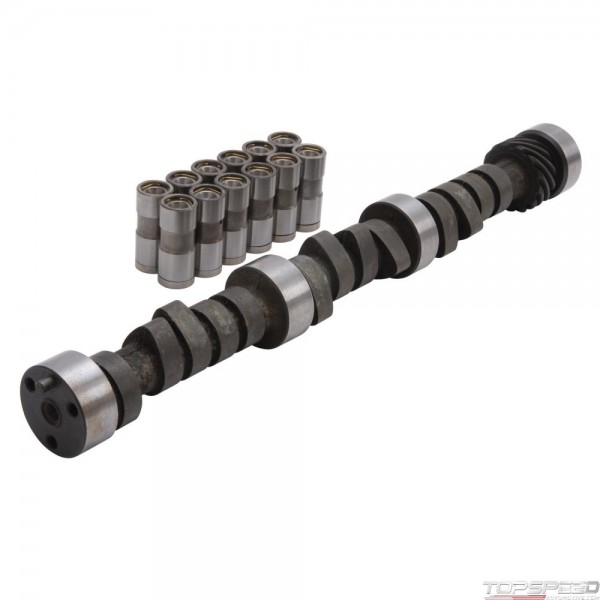

Edelbrock Performer-Plus Camshaft PN: 2112 is designed for 200-229 Chevy 90 Degree V6 engines and produce optimum torque from the low-end to the mid-range. Performer-Plus camshafts should be matched with Performer manifolds for vehicles operating from off-idle to 5500 rpm. The Performer-Plus PN: 2112 is a smooth idling cam for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams. All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions. For non-computer controlled vehicles and non-roller applications. , Camshaft specifications:,Intake duration: 204 Degrees,Exhaust duration: 214 Degrees,Intake lift: .420in.,Exhaust lift: .443in.,Lobe separation: 112 Degree,Intake Center Line: 107 Degree,Vacuum: 16in.
Chevrolet:Small-Block 90 Deg V6:200 (3.3L)/229 (3.8L)/262 (4.3L)
Chevrolet:Small-Block 90 Deg V6:200 (3.3L)/229 (3.8L)/262 (4.3L)
CAM KIT CHEV 229 V-6 - Part number: EDL-2112 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 2112 - CAM KIT CHEV 229 V-6 engine-camshaft-and-lifter-kit
Data sheet
- Engine Make/Size
- Chevy 200-262 (90 Degree)
- Usage
- Street/Performance
- RPM Range
- 0-6750
- Grade Type
- Performance
- Lifter Type
- Hydraulic
- Exh. Duration @ .050 in. (Deg)
- 214
- Exh. Duration Advertised (Deg)
- 280
- Exhaust Valve Lift
- 0.443 IN
- Intake Duration @ 0.050 in.
- 204 Degree
- Intake Duration Advertised
- 270
- Intake Valve Lift
- 0.420 IN
- Cam Type
- Cast
- Advertised Exhaust Duration
- 280 DD
- Advertised Intake Duration
- 270 DD
- Computer Controlled Compatible
- No
- Exhaust Duration at .050 inch Lift
- 214 DD
- Intake Duration .050 Inch Lift
- 204 DD
- Lifter Materials
- Hardened Steel
- Lobe Separation
- 112 DD
Package dimensions
Width: 8.00 inch
Height: 3.70 inch
Depth: 26.50 inch
Weight: 10.65 lb
