CAM KIT S/B CHEV-400
Availability:
Out-of-Stock
Description

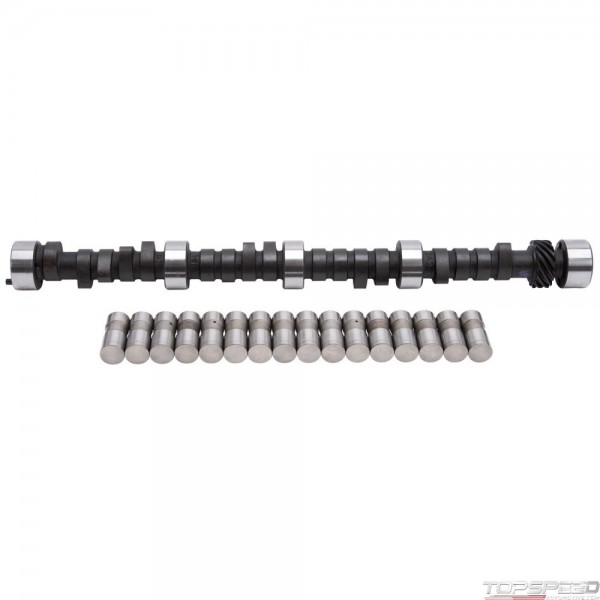

Edelbrock Performer-Plus Camshaft PN: 2103 is designed for 400 Chevy V8 engines and produce optimum torque from the low-end to the mid-range. Performer-Plus camshafts should be matched with Performer manifolds for vehicles operating from off-idle to 5500 rpm. The Performer-Plus PN: 2103 is a smooth idling cam for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams. All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions. This cam produced 395 Ft Lbs of Torque when paired with Performer Intake manifold PN: 2101 and stock cylinder heads. 50-State Legal E.O. PN: D-215-19 for 1957-86 small-block Chevrolet., Camshaft specifications:,Intake duration: 214 Degrees,Exhaust duration: 214 Degrees,Intake lift: .442in.,Exhaust lift: .442in.,Lobe separation: 112 Degree,Intake Center Line: 107 Degree,Vacuum: 15in.
Chevrolet:Small-Block Gen I:262 (4.3L)/265 (4.3L)/267 (4.4L)/283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L)
Chevrolet:Small-Block Gen I:262 (4.3L)/265 (4.3L)/267 (4.4L)/283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L)
CAM KIT S/B CHEV-400 - Part number: EDL-2103 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 2103 - CAM KIT S/B CHEV-400 engine-camshaft-and-lifter-kit
Data sheet
- Engine Make/Size
- Chevy Small Block (262-400)
- Usage
- Street/Performance
- RPM Range
- 0-6750
- Grade Type
- Performance
- Lifter Type
- Hydraulic
- Exh. Duration @ .050 in. (Deg)
- 214
- Exh. Duration Advertised (Deg)
- 288
- Exhaust Valve Lift
- 0.442 IN
- Intake Duration @ 0.050 in.
- 214 Degree
- Intake Duration Advertised
- 288
- Intake Valve Lift
- 0.442 IN
- Cam Type
- Cast
- CARB Executive Order Number
- D-215-19
- Advertised Exhaust Duration
- 288 DD
- Advertised Intake Duration
- 288 DD
- Computer Controlled Compatible
- No
- Exhaust Duration at .050 inch Lift
- 214 DD
- Intake Duration .050 Inch Lift
- 214 DD
- Lifter Materials
- Hardened Steel
- Lobe Separation
- 112 DD
Package dimensions
Width: 8.00 inch
Height: 3.70 inch
Depth: 26.50 inch
Weight: 13.80 lb
