Universal Pump
Availability:
Qty: 14, Delivery time: 7 working days
Qty: 7, Delivery time: 8 working days
Description
100 years of OE experience, supplier to the world's top automakers, OE Heritage and knowledge built into every aftermarket part, comprehensive portfolio for a wide range of vehicles and model years.
With a presence in more than 150 countries, and a global network of over 2750 service centers, Delphi Technologies aftermarket provides OE specification end-to-end solutions from components to sophisticated software solutions. With a wide-ranging portfolio including gasoline fuel systems, diesel fuel systems, maintenance solutions, engine management and vehicle electronics, backed by OE-level diagnostic and test equipment, training and technical information, Delphi Technologies enables garages to service and repair vehicles right the first time.
Delphi Technologies is a brand of BorgWarner Inc.
With a presence in more than 150 countries, and a global network of over 2750 service centers, Delphi Technologies aftermarket provides OE specification end-to-end solutions from components to sophisticated software solutions. With a wide-ranging portfolio including gasoline fuel systems, diesel fuel systems, maintenance solutions, engine management and vehicle electronics, backed by OE-level diagnostic and test equipment, training and technical information, Delphi Technologies enables garages to service and repair vehicles right the first time.
Delphi Technologies is a brand of BorgWarner Inc.

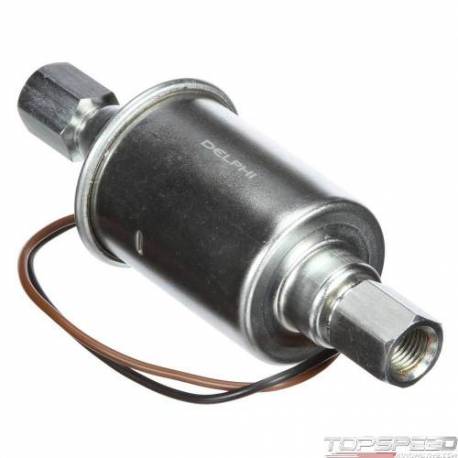

Universal Pump - Part number: DPH-FD0040 - for American Cars - delivery to the UK and the EU
Manufacturer part number: FD0040 - Universal Pump electric-fuel-pump
Data sheet
- Fuel Type
- Diesel
- Gasket Or Seal Included
- No
- Terminal Quantity
- 2
- Terminal Type
- Lead Wire
- Wiring Harness Included
- No
- Inlet Type
- Female Threaded
- Outlet Type
- Female Threaded
- Package Contents
- Electric Fuel Pump, Bracket, (4) Hose Clamps, Nut/Bolt, (4) Rubber Hoses, (2) Splices, Terminal Hardware, Washers, Instruction Sheet
- Item Grade
- Standard Replacement
- Pump Type
- Electric
- In Tank or External
- External
- System Pressure (psi)
- 12
- Average Current Draw
- 4
- Average Flow Rating (GPH)
- 32
- System Pressure
- 8 psi
- Maximum Pressure (PS)
- 12.0
- Inlet Outside Diameter (in)
- 0.500
- Outlet Outside Diameter (in)
- 0.500
Package dimensions
Width: 3.19 inch
Height: 6.50 inch
Depth: 4.06 inch
Weight: 1.58 lb
