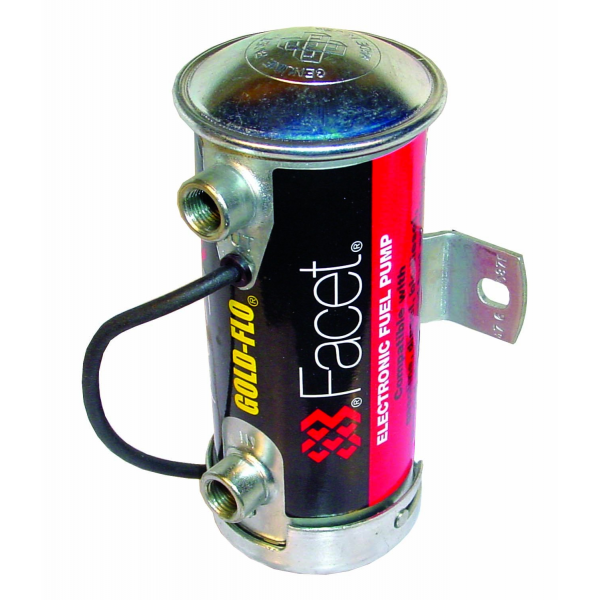

Silver Top Cylindrical Fuel Pump

Silver Top Cylindrical Fuel Pump

Manufacturer: FACET PUMPS
Part number: 476087
MPN: 476087
Availability:
£113.95
Tax included

Qty: 9, Delivery time: 1 working days

Description

Facet Silver Top Cylindrical Fuel Pump

An industry standard for over 60 years, these lightweight compact pumps can be found in almost every conceivable application. With output ranges up to 170.3 liters/hour, .68 bar, these pumps will provide high-performance output for everything from racing cars to heavy duty agricultural and construction machinery. E10 E85 Compatible.

Please note. Not supplied with unions. Please see Related Products tab for straight and angled 1/8 NPT x 8mm unions

Specification:- Road
Pump:- 476087
Voltage:- 12v
Earth:- Neg
Pressure (Psi):- 4.0-5.5
Flow:- US Gallons/Hr 30
Dry Prime Height in Mtrs:- 0.6
Thread Size:- 1/8th nptf
Operating Temperature:- -40º to +180° F (all Models)

Average Run Time or MTBF:- 6000 hrs

Legal Requirements:- Certified & Complies With EEC 95/54 Requirements

Length:-140mm

Diameter:- 54mm

Please Note:- Designed and manufactured to automotive specification and not recommended for the maintenance of flight

Applicatins:- Motorsport, Military, Marine, Agriculture

Silver Top Cylindrical Fuel Pump - Part number: 2WC-476087 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 476087 - Silver Top Cylindrical Fuel Pump electric-fuel-pump

Package dimensions

Width: 8.00 inch
Height: 8.00 inch
Depth: 8.00 inch
Weight: 8.00 lb
