FUEL PUMP LOW PRESSURE 12V 38 GPH GASOLINE/E85
Availability:
Qty: 10, Delivery time: 2 working days
Qty: 40, Delivery time: 8 working days
Description

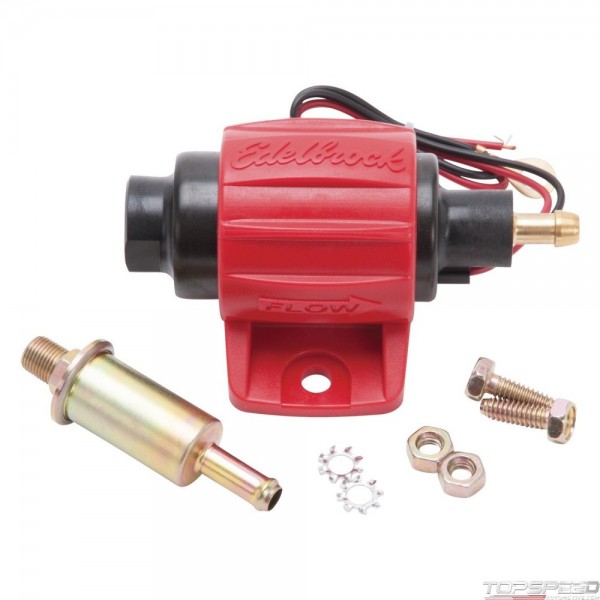

Edelbrock part PN: 17301 fuel pump is a gravity fed type pump with a simple 2 wire design. It requires approximately one amp average draw at maximum delivery and works on 12 Volt negative ground systems only. It features an in-line style rotor and vane pump design. 4-7 PSI, 38 GPH for most carbureted applications and is compatible with gasoline and E85. Pump has integrated 5/16 barb fittings on fuel outlet and 5/16 fitting on included fuel filter inlet.
FUEL PUMP LOW PRESSURE 12V 38 GPH GASOLINE/E85 - Part number: EDL-17301 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 17301 - FUEL PUMP LOW PRESSURE 12V 38 GPH GASOLINE/E85 electric-fuel-pump
Data sheet
- Fuel Type
- Gas
- Free Flow GPH
- 38
- Outlet Quantity
- 1
- Mounting Hardware Included
- Yes
- Fuel Pump Type
- Electric
- Gasket Or Seal Included
- No
- Terminal Type
- Lead Wire
- Wiring Harness Included
- No
- Inlet Type
- Hose Barb
- Outlet Type
- Hose Barb
- Fuel Pump Inlet Type
- Hose Barb
- Fuel Sending Unit Included
- No
- Mounting Bracket Included
- Yes
- Negative Ground
- Yes
- Regulator Included
- No
- Seal And Lock Ring Included
- No
- Strainer Included
- NO
- Maximum Flow Rating
- 144 LPH/38 GPH
- Maximum Pressure
- 7 ps
- Minimum Pressure
- 4 ps
- Outlet Outside Diameter
- 0.312 IN
- Universal Or Specific Fit
- Universal
- Pump Type
- Electric
- Compatible Fuel Type
- Gasoline And E85
- In Tank or External
- External
- Internal Or External
- External
- Pump Design
- In-line Electric Fuel Pump
Package dimensions
Width: 7.25 inch
Height: 3.00 inch
Depth: 7.50 inch
Weight: 1.20 lb
