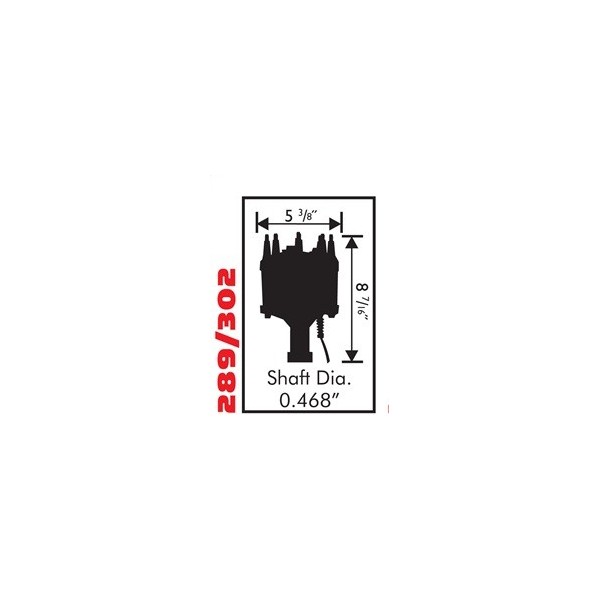

Distributor Ford 289/302 Hydraulic Roller Cams Steel Gear

For Ford enthusiasts that are serious about performance! Just under the brass terminals of the MSD cap and rotor is an easy-to-adjust mechanical advance assembly. The assembly is fine blanked from chromoly steel, rig-welded for strength plus receives a QPQ coating. The precision weights glide on nylon bushings for smooth advancement and different springs and stop bushings are supplied so a variety of advance curves can be tuned. The steel shaft that spins the advance and reluctor receives a friction reducing coating plus is guided by a sealed ball bearing and long sintered bushing. This combination provides stable timing signals and spark delivery at any RPM. Triggering chores are handled by MSD's race proven, maintenance-free magnetic pick-up.

Distributor; Ford 289/302 Hydraulic Roller Cams; Steel Gear

FEATURES:
- CNC machined billet aluminum housing and Dupont Rynite base
- Supplied w/Cap-A-Dapt and rotor (accepts MSD socket style caps)
- Must Be Used w/An MSD Ignition Control
- Mech. advance assem. can be locked out for crank trigger systems
- Nylon pads ensure smooth operation of the advance weights
- Advance weight pins are staked and tig welded to the plate
- Advance plate and weights are fine blanked from chrome moly steel
- QPQ coated for friction reduction
- QPQ coated polished steel shaft; guided by sealed ball bearings
- Maintenance-free magnetic pickup and precision reluctor
- Creates stable trigger signals throughout the rpm range
- Easy-to-adjust mech. advance w/supplied springs and stop bushings
