- Out-of-Stock

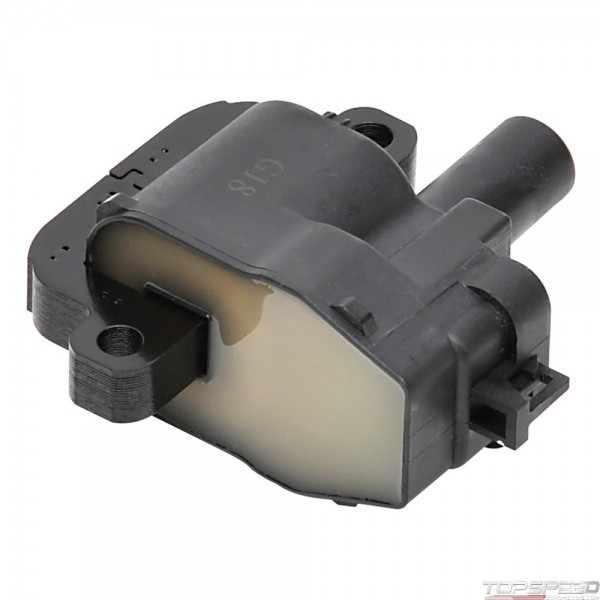

IGNITION COIL FOR GM LS1/LS21
Availability:
Out-of-Stock
Description
Edelbrock part PN: 22745 Max-Fire LS Coil Pack is designed for use with 1997-2013 GM Gen III & IV LS engines. It features a high output design that delivers up to 11% more voltage and 19% more energy over a stock coil. It's ideal for use with supercharged, turbo, nitrous or E85 fueled engines. Edelbrock Max-Fire Coil On Plug ignition coils are designed with higher resistance for increased energy output at higher rpm, when compared to an OEM coil. The coils are sealed with a high temperature epoxy for shock and vibration resistance?as well as excellent thermal conductivity. The spark plug spring contact is made from stainless steel, with a ferrite lug to reduce EMI/RFI noise, while the boots are molded from a high temperature silicone compound for superior heat resistance up to 550 degrees F. Order the direct bolt-on OEM coil pack best suited for your vehicle. Be sure to check your stock coils on your truck or van to make sure they physically match. GM offered several styles of LS1 coils that are not all compatible with each other. Sold individually.
Chevrolet:Small-Block Gen III LS1:346 (5.7L),Chevrolet:Small-Block Gen III LS2:364 (6.0L)
Chevrolet:Small-Block Gen III LS1:346 (5.7L),Chevrolet:Small-Block Gen III LS2:364 (6.0L)
IGNITION COIL FOR GM LS1/LS21 - Part number: EDL-22745 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 22745 - IGNITION COIL FOR GM LS1/LS21 direct-ignition-coil
Data sheet
- Voltage
- 12 2H
- Terminal Quantity
- 1
- Terminal Gender
- Female
- Terminal Type
- Blade Pin
- Connector Gender
- Female
- Mount Type
- Plug
- Wire Quantity
- 2
- Coil Type
- Ignition Coils
- Oil Filled
- No
- Height
- 3.75 IN
- Length
- 3.75 IN
- Width
- 1.5 IN
- Mounting Bracket Included
- No
- Coil Wire Included
- No
- Overall Height
- 3.75 IN
- Coil Shape
- Rectangular
- Ignition Type
- Distributorless
- Mounting Position
- Cylinder Head
- Requires External Resistor
- No
Package dimensions
Width: 3.12 inch
Height: 4.88 inch
Depth: 4.12 inch
Weight: 1.70 lb
